Teison Split DC Fast Charging Station 520-720 kW

SKU:TSN-520DC-SPT

Charging Power 520 kW 600 kW 680 kW 720 kW

Megawatt-Class Centralized Power Matrix for Large-Scale Commercial Fleets & Superhubs

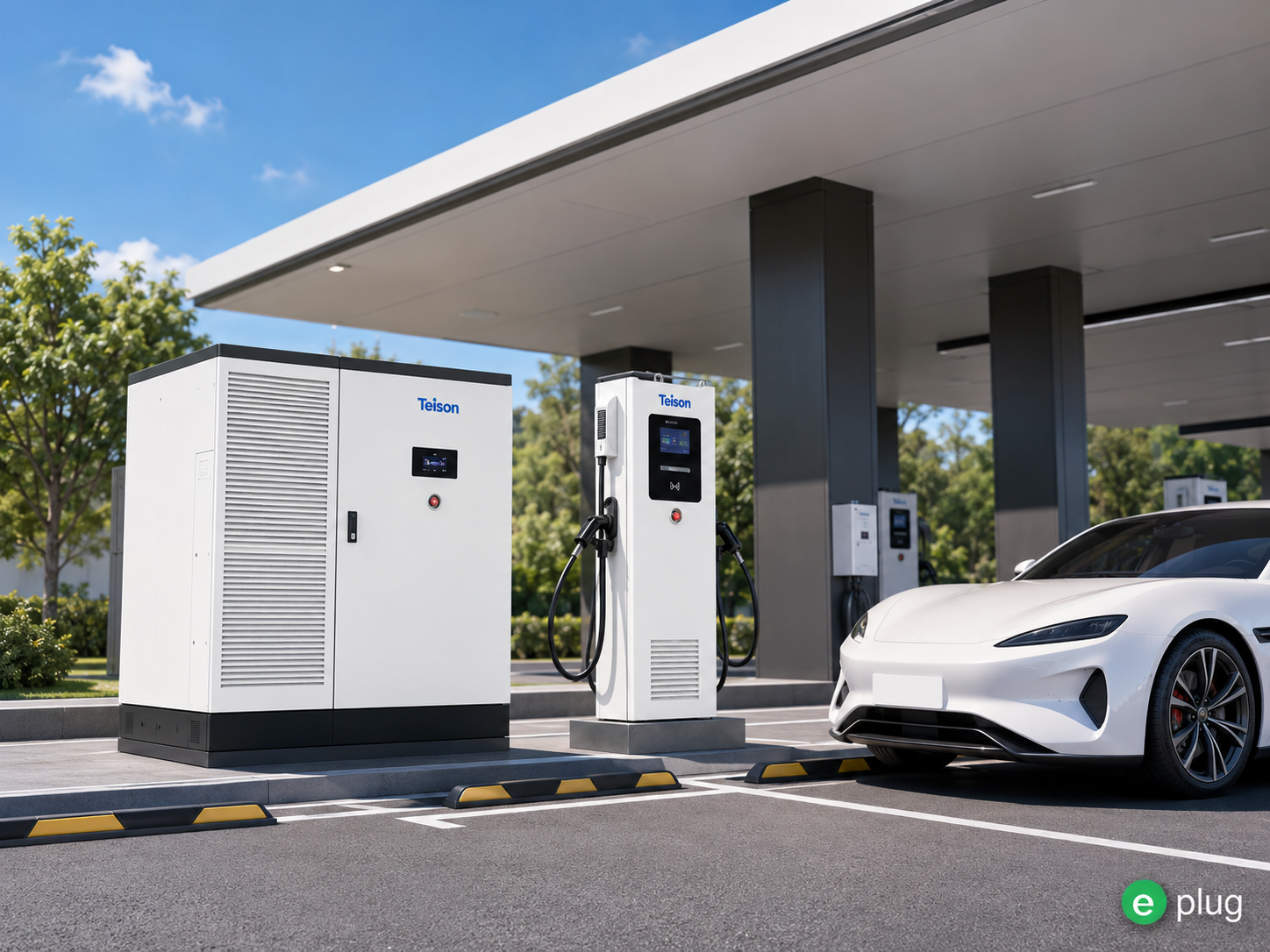

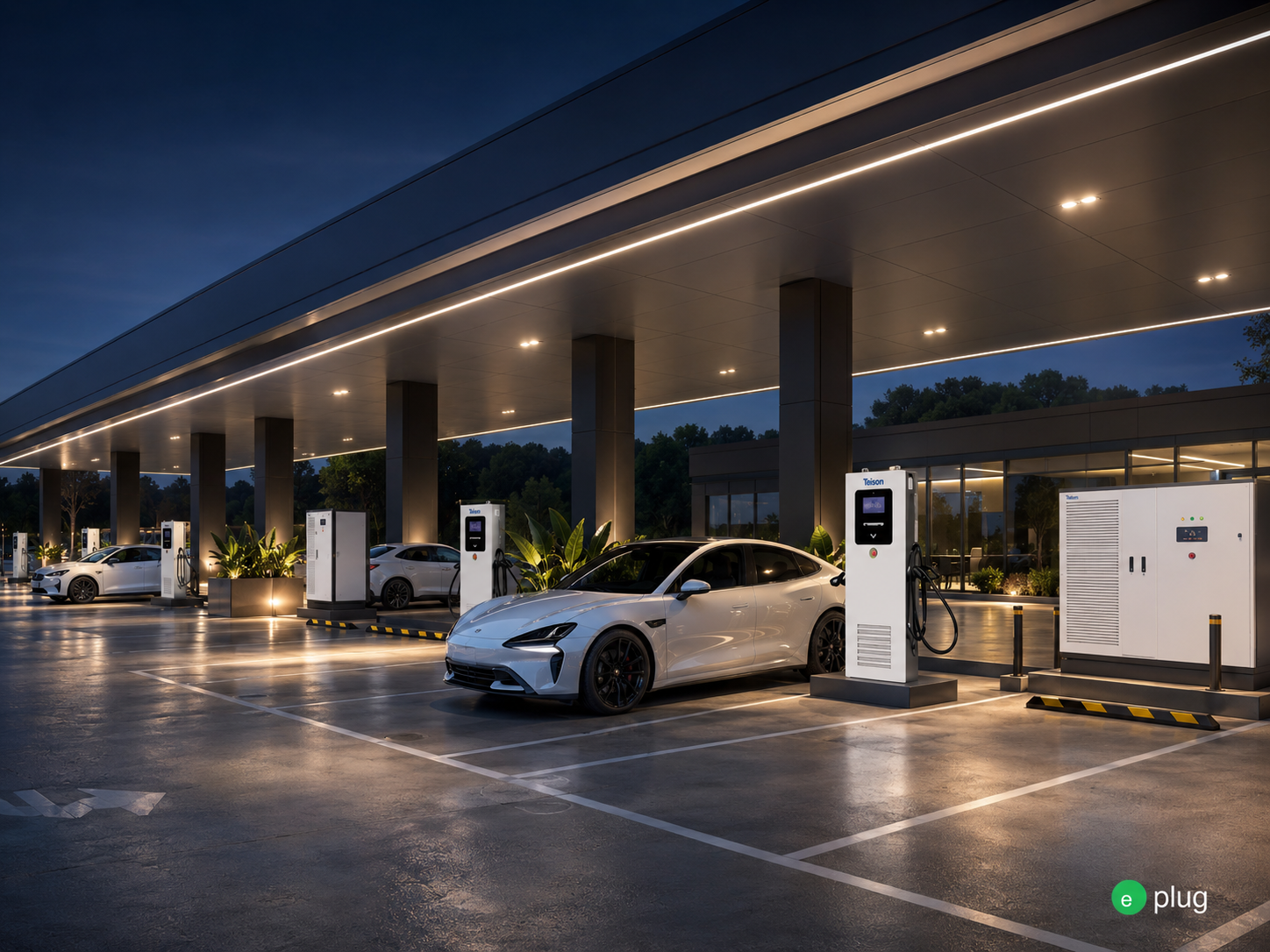

The Teison Split DC Fast Charging Station (520 kW to 720 kW Edition) is an industrial-grade, mega-capacity Level 3 fast charging system designed for massive commercial logistics hubs, public transit depots, and heavy-duty highway service plazas. Utilizing a decentralized split layout, a single centralized power cabinet dynamically channels power across up to 12 output channels. Configurable with massive continuous power capacities from 520 kW up to 720 kW, this advanced system features intelligent dynamic power module management to deliver peak charging efficiency across heavily occupied multi-bay hubs.

Key Features:

Megawatt-Scale Central Power Matrix: High-utility split cabinet distributes mega-capacity continuous power options from 520 kW, 600 kW, 680 kW, up to 720 kW across remote satellite dispensers.
High Output Channel Density: Supports up to 12 active output channels concurrently, maximizing charging throughput and significantly reducing wait times for commercial fleets.
Flexible Multi-Mode Power Matrix: Outfitted with full-flexibility and semi-flexibility power allocation options to customize real-time energy distribution per channel based on connected vehicle demands.
Dual Cooling Terminal Support: Compatible with both air-cooled terminals delivering a continuous 300A current and liquid-cooled terminal alternatives scaling up to 500A per channel.
Dynamic Power Module Management: Automated real-time power module optimization dynamically shifts internal circuits to maintain a peak conversion efficiency of over 95% under variable loading conditions.
Industrial All-Weather Ingress: Certified to IP55 ingress protection, IK10 impact resistance, and C4-level high anti-corrosion standards for long-term outdoor reliability.
e-MOVE RO and e-Mobility RO government state aid programme compatible

Recommended Installation Sites:

Commercial Truck & Heavy Logistics Yards: Power heavy-duty electric trucks, delivery vans, and logistics fleets simultaneously across multiple dedicated loading bays.
Public Highway Corridors & Supercharging Plazas: Deliver maximum turnaround speeds for cross-country travelers and commercial transport fleets along major transit arteries.
Metropolitan Bus & Public Transit Depots: Centralize heavy power hardware in a secure enclosure while running streamlined charging cables to multiple bus parking bays.
Industrial Parks & Fleet Service Centers: Charge dozens of enterprise vehicles concurrently from a single centralized power infrastructure.

View full details

Technical Specifications

Power & Input

Input Power Grid Connection: Three Phase 3P + N + PE.
Input AC Voltage Range: Three Phase 400 VAC plus or minus 10%.
Input Frequency Compatibility: 50 or 60 Hz.
Nominal Rated Input Current: Three Phase 835A (for 520 kW), 960A (for 600 kW), 1090A (for 680 kW), or 1155A (for 720 kW).
Maximum System Input Power: 547 kW (for 520 kW), 632 kW (for 600 kW), 716 kW (for 680 kW), or 758 kW (for 720 kW).
AC Earthing Networks Supported: TN-C, TN-S, TN-C-S, TT.
Input Power Factor Rating: Greater than or equal to 0.99.
Total Harmonic Distortion (THD): Less than or equal to 5%.
Standby Power Consumption: 50 W.

Output Performance

Nominal DC Power Options: 520 kW, 600 kW, 680 kW, 720 kW.
Output Voltage Range: 150 to 1000 VDC.
Full-Flex Matrix Power Allocation: Full-flex 520 kW, Full-flex 600 kW, Full-flex 680 kW, or Full-flex 720 kW continuous distribution options.
Semi-Flex Matrix Power Allocation: Semi-flex 280 kW (for 520 kW version), Semi-flex 320 kW (for 600 kW version), Semi-flex 360 kW (for 680 kW version), or Semi-flex 360 kW (for 720 kW version).
Maximum Output Current (Air Cooling Cable): 300A continuous per channel.
Maximum Output Current (Liquid Cooling Cable): 500A continuous per channel.
Output Channel Configuration Options: Full-flex configuration supports 8 channels; Semi-flex supports 12 channels (Optional: 8, 10, or 12 channels).
Supported Vehicle Connectors: Combinations of CCS2, CCS1, GB/T, CHAdeMO, and NACS.
System Peak Efficiency: Greater than 95%.
DC Voltage Accuracy: Less than or equal to plus or minus 0.5%.

Connectivity & Interface

Standard Network Connectivity: Ethernet, Wi-Fi.
Optional Network Gateway: 4G LTE wireless cellular module.
Communication Protocol Standards: OCPP 1.6J JSON (supports future firmware upgrade to OCPP 2.0.1).
User Interface Screen: 10.1-inch interactive LCD Touchscreen display.
Interface Language Support: English standard (other custom languages available upon request).

Safety & Physical

Safety Protections: Overvoltage, undervoltage, overload, leakage current, overtemperature, grounding protection, transient overvoltage, short circuit protection, automatic fault self-diagnosis, and isolation detection.
Enclosure Protection Rating: IP55 weather resistance for Human Machine Interface (HMI) housing and Internal Control Boards (IKB).
Anti-Corrosion Shell Specification: Meets standard C4 anti-corrosion environmental criteria.
Operating Temperature Range: -30C to +55C (Linear power derating starts above 55C).
Storage Temperature Range: -40C to +70C.
Relative Humidity Levels: Less than 95% RH (Non-condensing).
Maximum Operational Altitude: Up to 2000 meters.
Acoustic Noise Rating: Less than or equal to 70 dB at a 3-meter distance under full load output.
Cooling System Infrastructure: Forced air cooling system.
Installation Mounting Configuration: Floor-standing / Ground-mounted centralized cabinet assembly.
Physical Cabinet Dimensions (W x H x D): 1700 x 1980 x 1100 mm.
Total Central Cabinet Weight: Less than or equal to 850 kg.
Certifications & Production Compliance: CE, CB, IEC 61851-1, IEC 61851-21-2, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, ISO 15118-1, ISO 15118-2, ISO 15118-3, DIN 70121.
Emergency Controls: Dedicated physical red emergency stop button.
