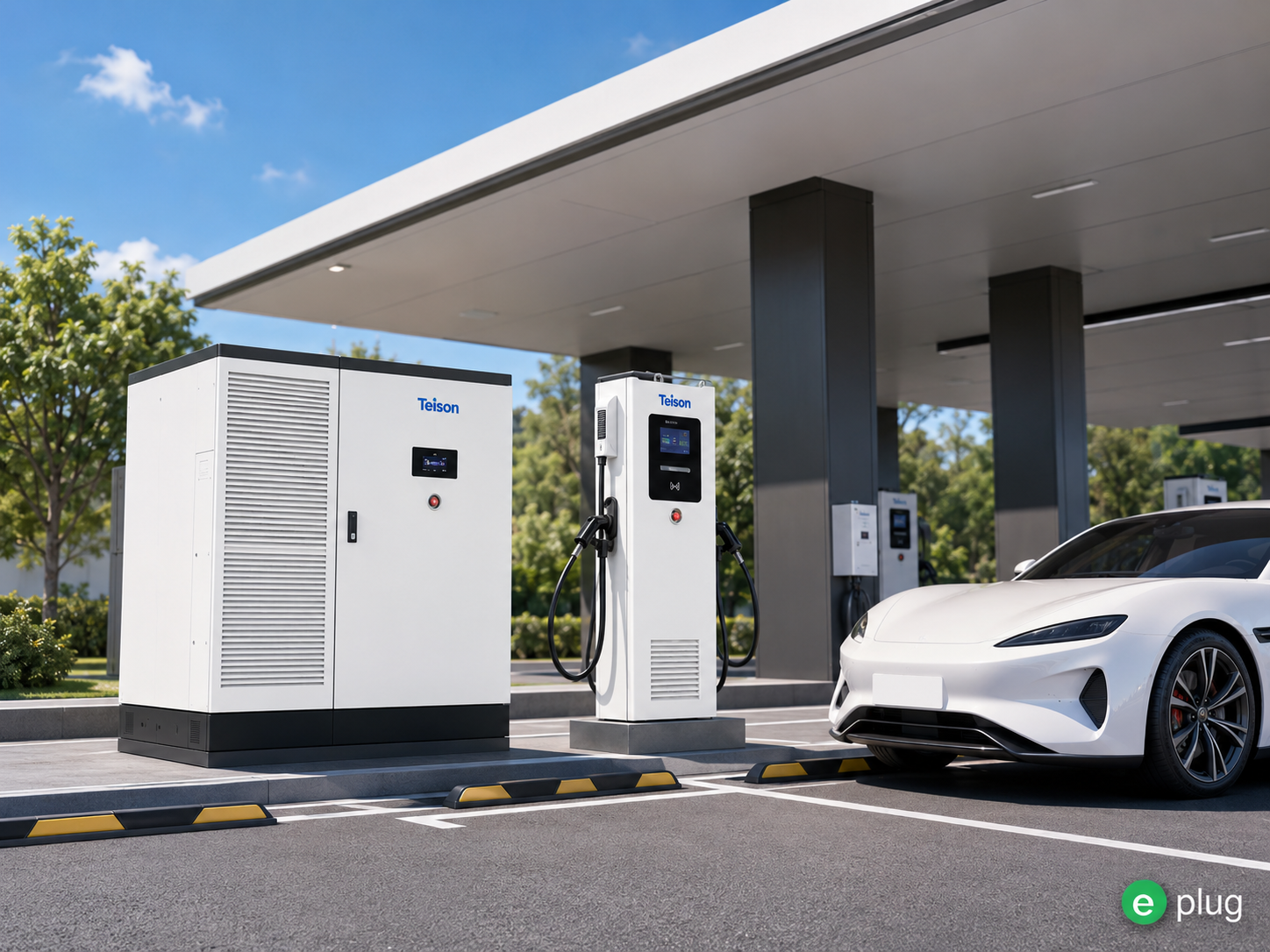

Teison Split DC Fast Charging Station 240-480 kW

Teison Split DC Fast Charging Station 240-480 kW

TSN-240DC-SPT

Charging Power
Request a Quote

Centralized Central Power Hub for Multi-Bay Ultra-Fast Commercial Charging

The Teison Split DC Fast Charging Station (240 kW to 480 kW Edition) is an industrial-grade charging solution engineered to power massive, multi-vehicle enterprise networks. Utilizing a decentralized split architecture, a single centralized power unit efficiently manages dynamic power distribution across up to 12 independent charging channels. Configurable with massive continuous power capacities from 240 kW up to 480 kW, this advanced system features automated dynamic power module shifting to maintain peak efficiency across heavily occupied multi-bay transit docks and public highway hubs.

Key Features:

  • Centralized Central Power Matrix: High-utility split design distributes scalable maximum power from 240 kW, 320 kW, 400 kW, up to 480 kW across separate remote satellite outputs.
  • Massive 12-Channel Density: Highly scalable layout supports up to 12 active output channels concurrently, reducing wait times at commercial hubs.
  • Flexible Multi-Mode Power Matrix: Equipped with sophisticated software allowing site managers to configure outputs under full-flexibility or semi-flexibility matrices for customized energy allocation per channel.
  • Dual Cooling Terminal Paths: Highly compatible configuration supports high-performance air-cooled terminals delivering a continuous 300A current, alongside liquid-cooled terminal alternatives scaling to 500A per channel.
  • Dynamic Module Switching Optimization: Automated real-time power module management continuously adjusts active circuit blocks to maximize efficiency during variable loading cycles.
  • Rugged Environmental Ingress: Outfitted with an IP55 rated weather-resistant casing and C4-level high anti-corrosion protection for long-term reliability in harsh outdoor sites.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Recommended Installation Sites:

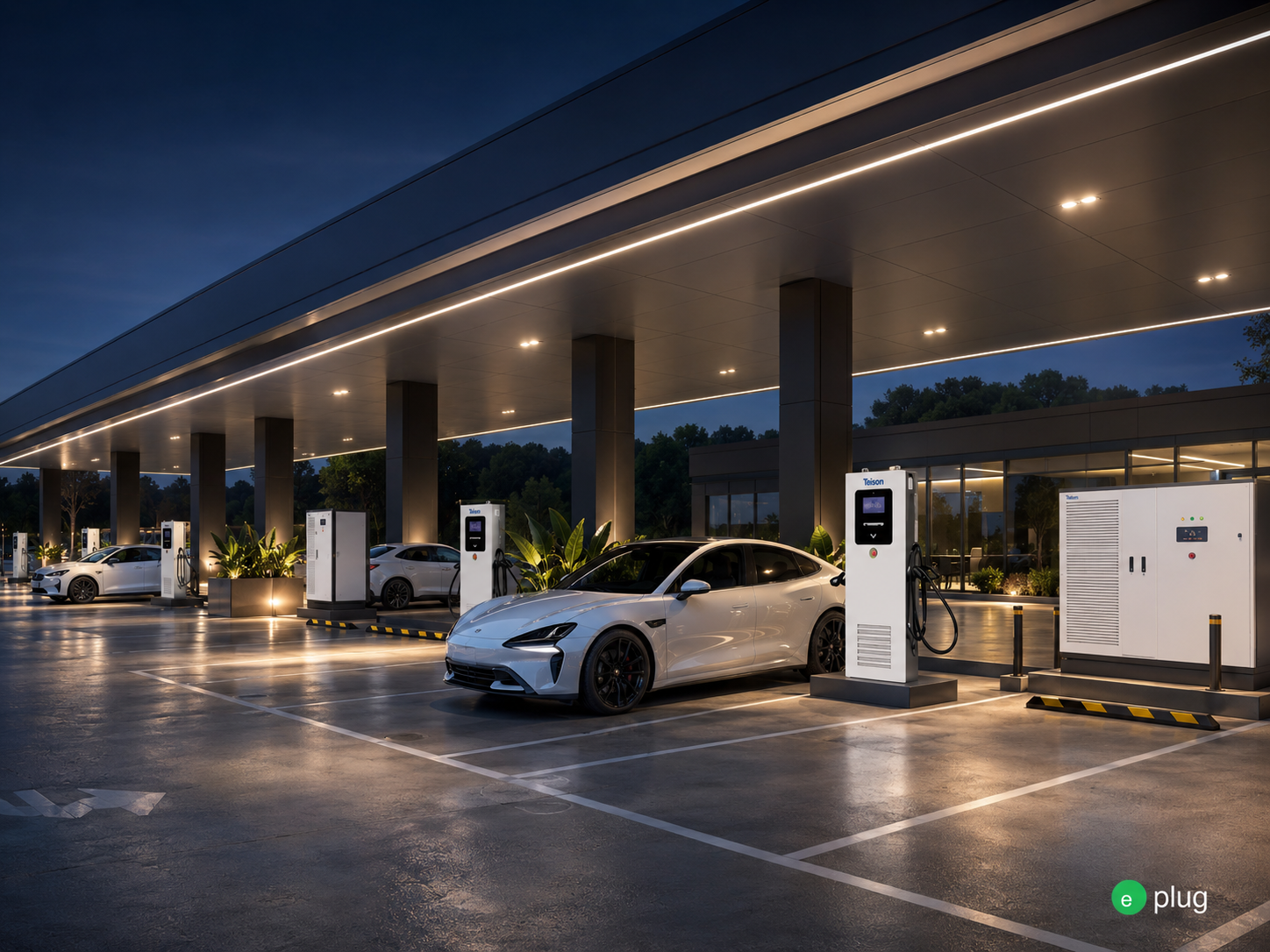

  • High-Volume Highway Hubs & Service Plazas: Power vast multi-car rest zones efficiently by distributing total system power from a single, tucked-away central cabinet.
  • Heavy Commercial Logistics & Transport Yards: Charge massive fleets of distribution vans, trucks, and buses simultaneously across separate adjacent parking bays.
  • Metropolitan Transit Hubs & Taxi Depots: Maximize turnover efficiency in space-constrained urban areas by mounting small satellite plugs while centralizing heavy components.
  • Enterprise Park & Multi-Tenant Workspace Garages: Deliver high-occupancy Level 3 DC capability across dozens of parking spaces simultaneously without individual standalone blocks.
View full details

Technical Specifications

Power & Input

  • Input Grid Connection Type: Three Phase 3P + N + PE.
  • Input AC Voltage Range: Three Phase 400 VAC plus or minus 10%.
  • Input Frequency Compatibility: 50 or 60 Hz.
  • Nominal Rated Input Current: Three Phase 385A (for 240 kW), 515A (for 320 kW), 640A (for 400 kW), or 770A (for 480 kW).
  • Maximum System Input Power: 253 kW (for 240 kW), 337 kW (for 320 kW), 421 kW (for 400 kW), or 505 kW (for 480 kW).
  • AC Earthing Networks Supported: TN-C, TN-S, TN-C-S, TT.
  • Input Power Factor Rating: Greater than or equal to 0.99.
  • Total Harmonic Distortion (THD): Less than or equal to 5%.
  • Standby Power Consumption: 50 W.

Output Performance

  • Nominal DC Power Options: 240 kW, 320 kW, 400 kW, 480 kW.
  • Output Voltage Range: 150 to 1000 VDC.
  • Full-Flex Matrix Power Allocation: Full-flex 240 kW, Full-flex 320 kW, Full-flex 400 kW, or Full-flex 480 kW continuous distribution options.
  • Semi-Flex Matrix Power Allocation: Semi-flex 120 kW (for 240 kW version), Semi-flex 160 kW (for 320 kW version), Semi-flex 200 kW (for 400 kW version), or Semi-flex 240 kW (for 480 kW version).
  • Maximum Output Current (Air Cooled Cable): 300A continuous per output channel.
  • Maximum Output Current (Liquid Cooled Cable): 500A continuous per output channel.
  • Standard Output Channel Density: 8 channels (for 240 kW), 10 channels (for 320 kW), or 12 channels (for 400 kW and 480 kW models).
  • Optional Channel Configurations: Customizable with 5, 6, 8, 10, or 12 channels depending on the specific model profile.
  • Supported Vehicle Connectors: Combined combinations of CCS2, CCS1, GB/T, CHAdeMO, and NACS.
  • System Peak Efficiency: Greater than 95%.
  • DC Voltage Accuracy: Less than or equal to plus or minus 0.5%.

Connectivity & Interface

  • Standard Network Connectivity: Ethernet, Wi-Fi.
  • Optional Network Gateway: 4G LTE wireless cellular gateway module.
  • Communication Protocol Standards: OCPP 1.6J JSON (supports future firmware upgrade to OCPP 2.0.1).
  • User Interface Screen: 10.1-inch interactive LCD Touchscreen display.
  • Interface Language Support: English standard (other custom languages available upon request).

Safety & Physical

  • Safety Protections: Overvoltage, undervoltage, overload, leakage current, overtemperature, grounding protection, short circuit protection, and automatic fault self-diagnosis.
  • Enclosure Protection Rating: IP55 weather resistance for Human Machine Interface (HMI) housing and Internal Control Boards (IKB).
  • Anti-Corrosion Shell Specification: Meets standard C4 anti-corrosion environmental criteria.
  • Operating Temperature Range: -30C to +55C (Linear power derating starts above 55C).
  • Storage Temperature Range: -40C to +70C.
  • Relative Humidity Levels: Less than 95% RH (Non-condensing).
  • Maximum Operational Altitude: Up to 2000 meters.
  • Acoustic Noise Rating: Less than or equal to 70 dB at a 3-meter distance under full load output.
  • Cooling Infrastructure System: Forced air cooling system.
  • Installation Mounting Configuration: Floor-standing / Ground-mounted centralized configuration assembly.
  • Physical Cabinet Dimensions (W x H x D): 1800 x 1930 x 1000 mm.
  • Total Central Cabinet Weight: Less than or equal to 750 kg.
  • Standard Charging Cable Length: 5 meters standard (6m, 7m, or custom lengths available upon request).
  • Certifications & Production Compliance: CE, CB, IEC 61851-1, IEC 61851-21-2, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, ISO 15118-1, ISO 15118-2, ISO 15118-3, DIN 70121.
  • Emergency Controls: Dedicated physical red emergency stop button.
