Teison

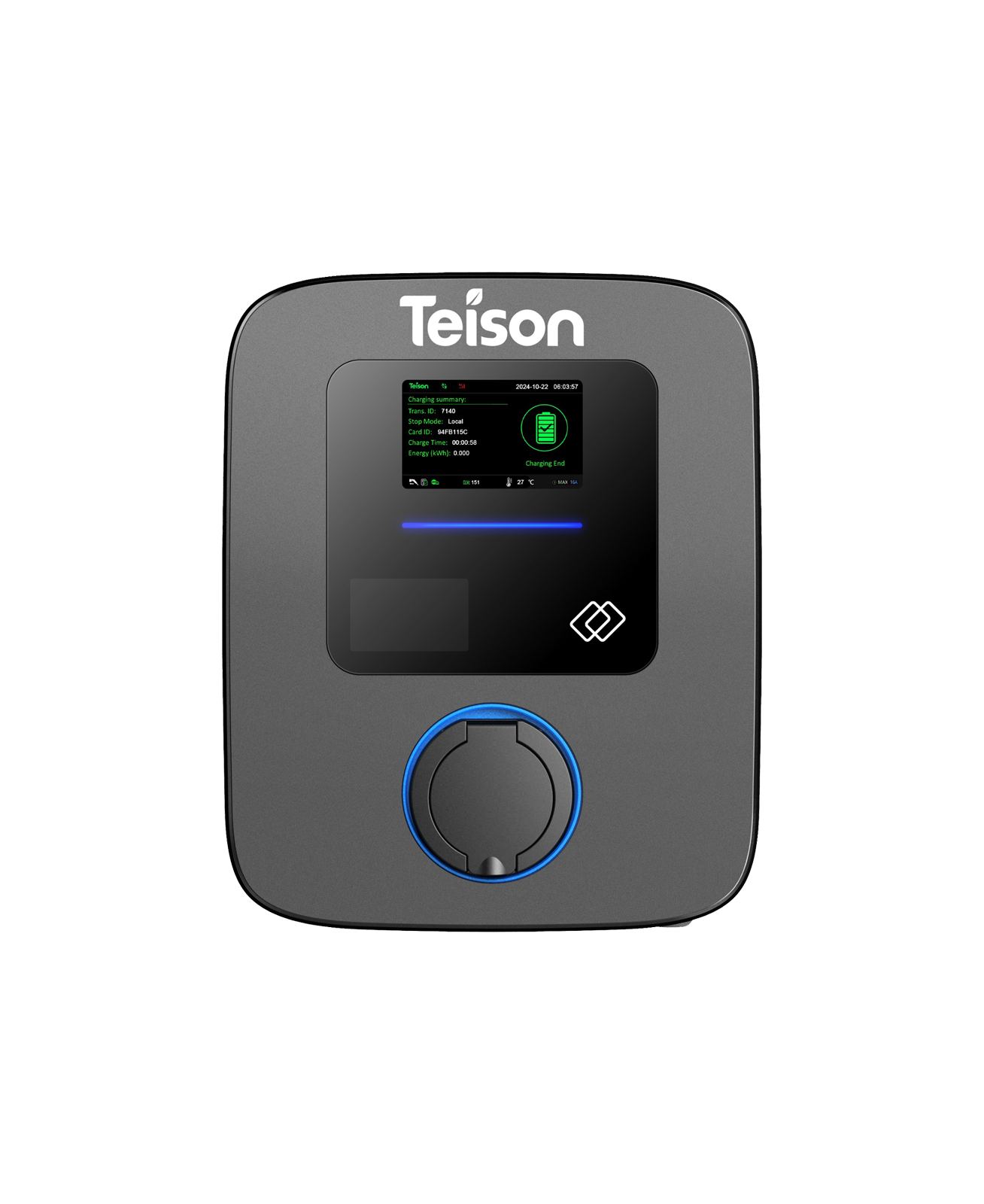

Teison Smart Pro AC Charging Station 7.5-22 kW Socket

Teison Smart Pro AC Charging Station 7.5-22 kW Socket

TSN-7.5AC-SPS

3.870,00 RON
3.870,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Charging Power

Key Features

  • Complete App Control: Use the App to schedule charging during off-peak hours, monitor energy consumption in real time, and manage user access via Wi-Fi, Bluetooth, or 4G.
  • Smart Solar Integration: Designed for green energy users, enabling optimized charging based on solar production when paired with compatible energy management systems.
  • OCPP 1.6J Connectivity: Open protocol ensures seamless integration with any backend management system, suitable for both homeowners and charge point operators.
  • Space-Saving Design: Compact form factor—one of the smallest 7kW smart wallboxes in the Smart Pro lineup—without compromising performance or safety.
  • Superior Protection: Integrated Type B RCD (AC 30mA + DC 6mA), eliminating the need for additional external protection devices.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible
View full details

Technical Specifications

Power & Input

  • Input Voltage: 230V ±10% (single-phase) / 400V ±10% (three-phase)

Output Performance

  • Output Power Options: 7.2kW / 11kW / 22kW
  • Connector Type: Type 2 (IEC 62196-2) Socket with protective cover

Connectivity & Interface

  • Connectivity: Ethernet (LAN), Wi-Fi, and Bluetooth (standard); optional 4G
  • User Interaction: LED status ring and mobile app control

Safety & Physical

  • Leakage Protection: Built-in DC 6mA + AC 30mA (Type B equivalent)
  • Enclosure Rating: IP65 (suitable for heavy outdoor conditions)
  • Impact Rating: IK10
  • Mounting: Wall-mounted (standard) or optional pole-mounted pedestal
  • Certifications: CE, TÜV, EN 61851-1

Download Technical Sheet
