Teison

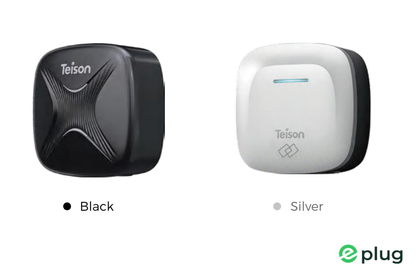

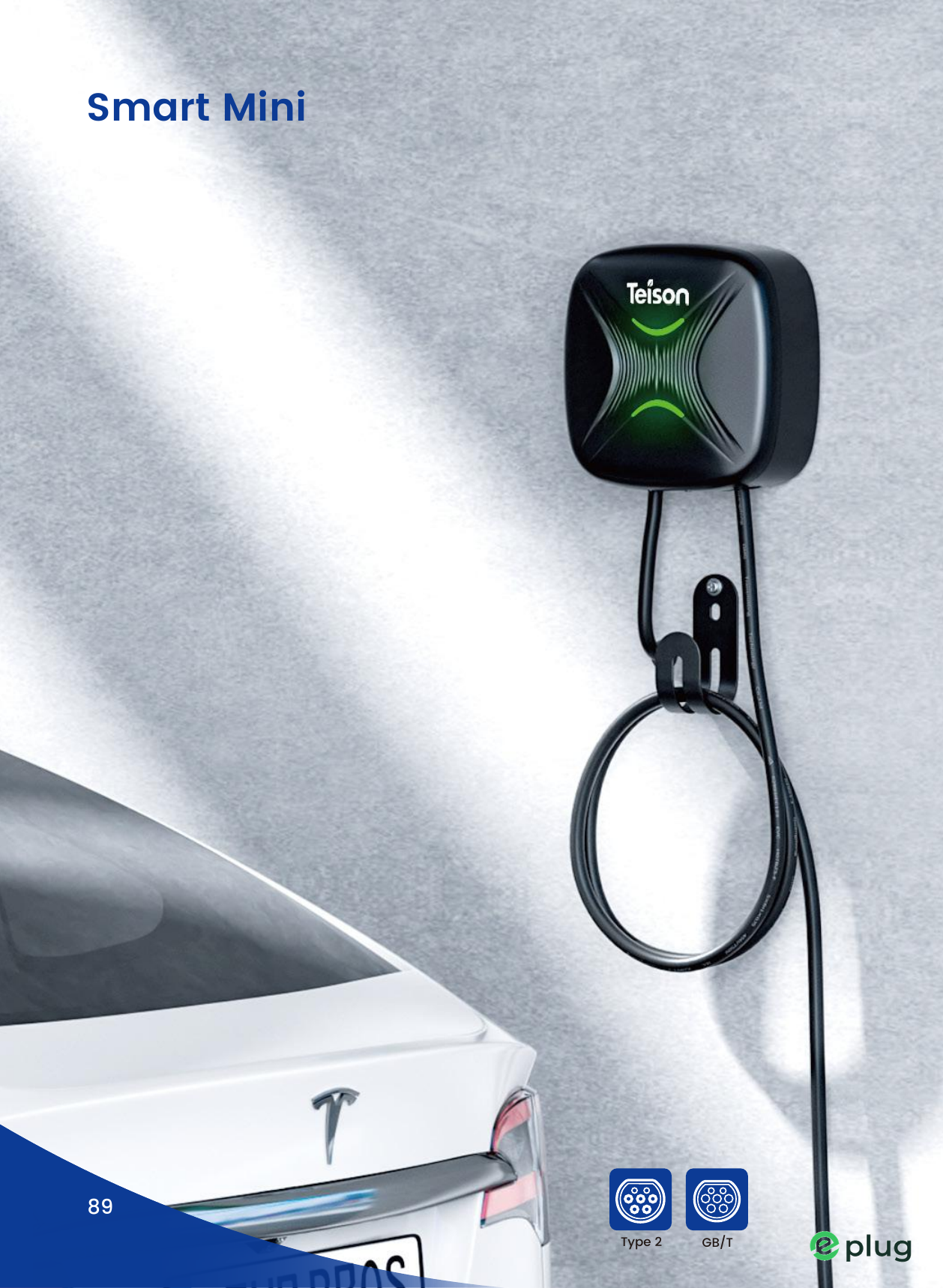

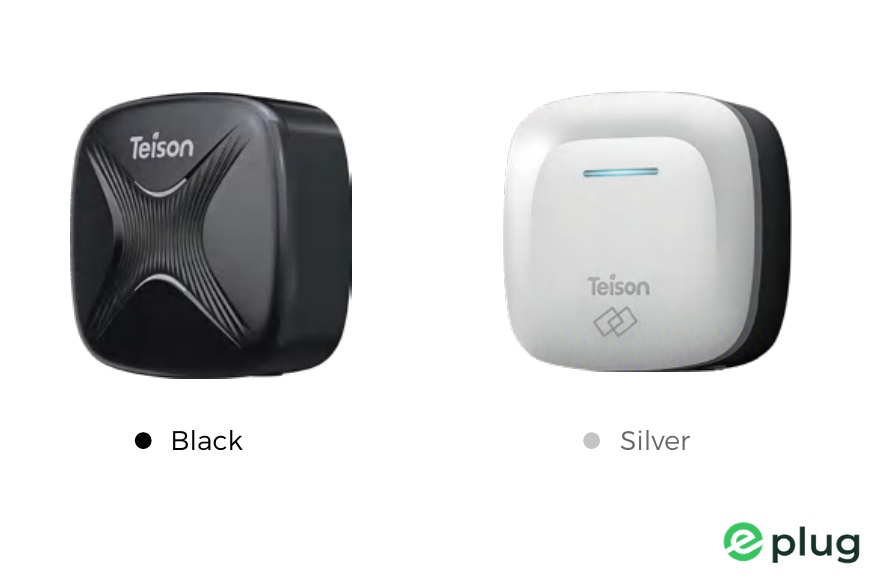

Teison Smart Mini Wallbox AC Charging Station 7.2-22 kW Cable

Teison Smart Mini Wallbox AC Charging Station 7.2-22 kW Cable

TSN-7.2AC-SMWC

3.064,00 RON
3.064,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Charging Power

Small Size. Massive Intelligence.

Don’t let the size fool you. The Teison Smart Mini Wallbox AC Charging Station 7.2-22 kW with Cable packs all the power of a commercial charging station into an ultra-compact, 22cm housing. Engineered for the modern European home, it offers a discreet yet high-performance charging solution that fits almost anywhere.

Key Features:

  • Ultra-Compact Design: At just 228.5 x 228.5 mm, it is one of the smallest smart chargers on the market, ideal for tight parking spaces and minimalist installations.
  • Full App Integration: Use the Mobile App (via Bluetooth, Wi-Fi, or 4G) to adjust charging current (6A to 32A), schedule sessions to save on energy bills, and view real-time logs.
  • Plug & Play or Secure Access: Switch between "Plug & Play" mode for instant charging or "App/RFID Auth" to prevent unauthorized use.
  • Dynamic Load Balancing: Ready for multi-device households. When paired with an optional CT clamp or RS485 meter, it prevents your home's main breaker from tripping.
  • Future-Proof Tech: Fully compliant with OCPP 1.6J protocols, allowing you to connect to future smart-grid or billing platforms.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible
View full details

Technical Specifications

Power & Input

  • Voltage: 230V (Single Phase), 380V (Three Phase)

Output Performance

  • Output Power Options: 7.2kW, 11kW, 22kW
  • Output Current: Adjustable 16A or 32A
  • Connector Variations:

    Tethered: 4.5m high-quality TPU cable with Type 2 Plug (standard EU).
    Socket: Universal Type 2 Socket (IEC 62196-2) for use with own cables.

Connectivity & Interface

  • Communication: Bluetooth & Wi-Fi (Standard); 4G LTE (Optional).

Safety & Physical

  • Residual Current Protection: Integrated Type B RCD (AC 30mA + DC 6mA) as standard for EU safety compliance.
  • Housing Material: High-strength PCV0 (Fire-retardant, UV-resistant).
  • Dimensions: 228.5 x 228.5 x 100mm.
  • Weight: Approx. 3kg (Socket) to 5.4kg (Tethered).
  • IP Rating: IP65 (Full protection against dust and rain).
  • IK Rating: IK08 (High impact resistance).
  • Operating Temp: -30°C to +50°C.
  • Certifications: CE, TUV, EN IEC 61851.

Download Technical Sheet
