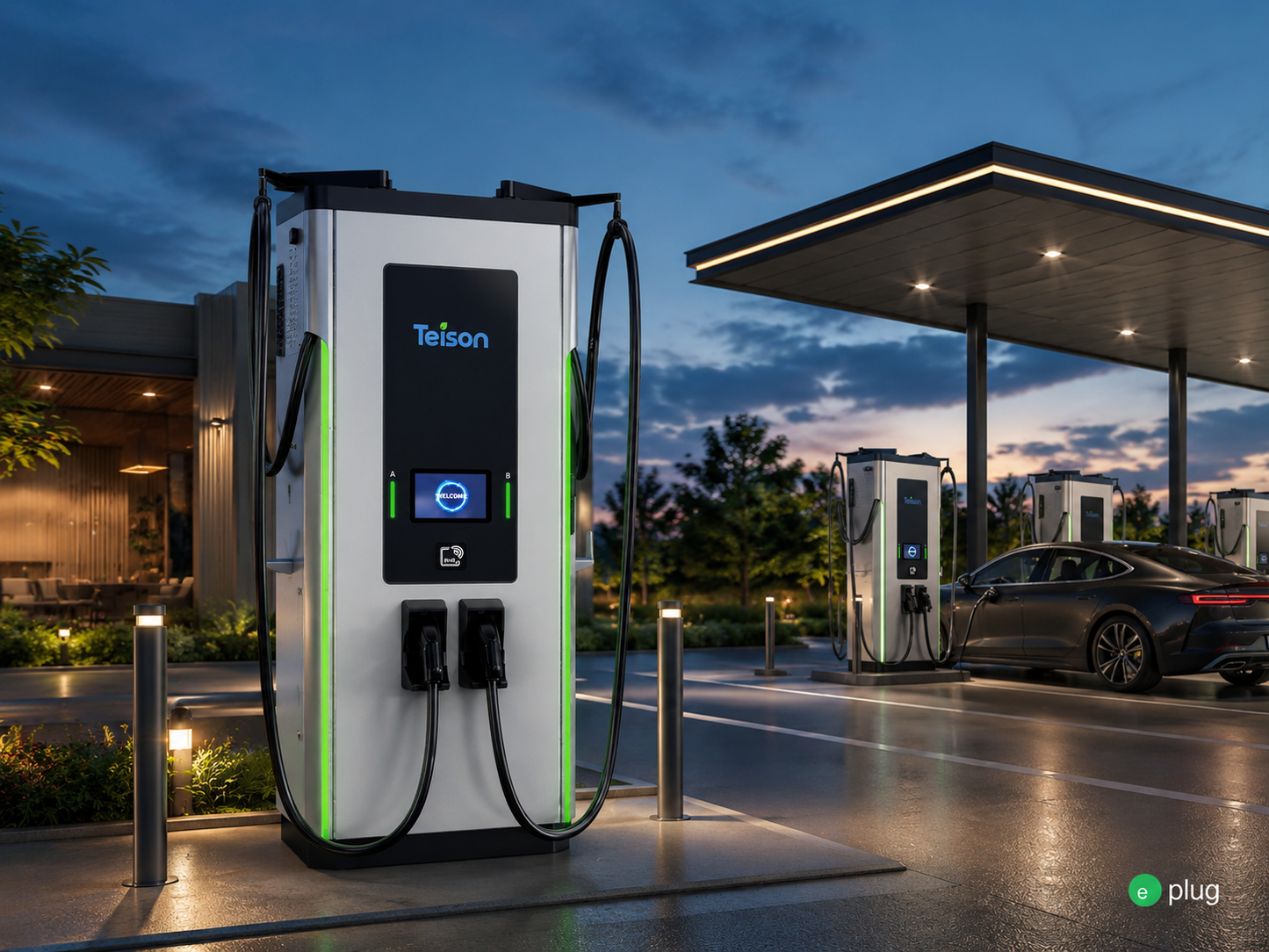

Teison Pro Max DC Fast Charging Station 300-480 kW

Teison Pro Max DC Fast Charging Station 300-480 kW

TSN-300DC-SxD-PM

Charging Power
Request a Quote

Ultra-High-Power Modular Fast Charging Platform for Heavy Fleets and Highway Hubs

The Teison Pro Max DC Fast Charging Station (300 kW to 480 kW Edition) is an elite, high-capacity Level 3 ultra-fast charging solution built to anchor busy public charging corridors, highway rest areas, and commercial logistics hubs. Utilizing advanced modular blocks, this heavy-duty system can be configured to supply immense continuous outputs of 300 kW, 360 kW, 400 kW, or 480 kW. Operating at a peak system efficiency exceeding 96%, the Pro Max framework offers a choice between high-performance air cooling or advanced liquid cooling systems to safely deliver maximum current with absolute reliability.

Key Features:

  • Immense Modular Power Capacity: Scalable infrastructure supports continuous power levels from 300 kW, 360 kW, 400 kW, up to a massive 480 kW to handle high-turnover public grids.
  • Advanced Cooling Architecture: Supports high-performance liquid cooling to deliver an exceptional maximum system current of 600A, alongside a highly efficient 400A air-cooled alternative.
  • Multi-Standard Outlet Diversity: Features highly flexible, customizable output layouts supporting standards including CCS2, CCS1, GB/T, CHAdeMO, and NACS.
  • Elite Public Protection: Built to meet strict IP55 ingress and IK10 structural impact rules, complete with full C4-level anti-corrosion chemistry resistance, smoke alarms, and immersion safety protection.
  • Smart Load Matrix Scheduling: Full out-of-the-box support for ISO 15118 and DIN 70121 protocols guarantees seamless vehicle communication and site dynamic load balancing.
  • Premium Operating Efficiency: Peak conversion efficiency exceeds 96%, significantly lowering thermal waste and operational energy overhead costs.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible
View full details

Technical Specifications

Power & Input

  • Input Grid Power Configuration: Three Phase 3P + N + PE.
  • Input AC Voltage Range: Three Phase 400 VAC plus or minus 10%.
  • Input Frequency Compatibility: 50 or 60 Hz.
  • Nominal Rated Input Current: Three Phase 480A (for 300 kW), 578A (for 360 kW), 640A (for 400 kW), or 768A (for 480 kW).
  • Maximum System Input Power: 316 kW (for 300 kW), 379 kW (for 360 kW), 421 kW (for 400 kW), or 505 kW (for 480 kW).
  • AC Earthing Networks Supported: TN-C, TN-S, TN-C-S, TT.
  • Input Power Factor Rating: Greater than or equal to 0.99.
  • Standby Power Consumption: 100 W.

Output Performance

  • Nominal DC Power Options: 300 kW, 360 kW, 400 kW, 480 kW.
  • Output Voltage Range: 150 to 1000 VDC.
  • Maximum System Output Current (Liquid Cooled): 600A continuous.
  • Maximum System Output Current (Air Cooled): 400A continuous.
  • Connector Output Current (Air Cooled): 300A, 350A, or 400A optional.
  • Connector Output Current (Liquid Cooled): 500A or 600A optional.
  • Standard Output Port Layout: 2 outputs supporting any two combinations of CCS2, CCS1, GB/T, CHAdeMO, or NACS.
  • Alternative Output Interface: Customizable with three output interfaces combining CCS2, CCS1, GB/T, CHAdeMO, NACS, and Type 2 AC.
  • Supported Vehicle Connectors: CCS2, CCS1, GB/T, CHAdeMO, NACS, Type 2.
  • Peak Conversion Efficiency: Greater than 96%.
  • DC Voltage Accuracy: Less than or equal to plus or minus 0.5%.

Connectivity & Interface

  • Standard Network Connectivity: Ethernet, Wi-Fi.
  • Optional Network Gateway: 4G LTE wireless cellular module.
  • Communication Protocol Standards: OCPP 1.6J JSON (supports future firmware upgrade to OCPP 2.0.1).
  • User Interface Screen: 10.1-inch interactive LCD Touchscreen display.
  • User Authentication Methods: RFID Card, QR Code, or Mobile Application access.
  • Optional Authentication Terminal: POS payment terminal integration.
  • Energy Metering Configuration: Standard CE meter configuration (MID or PTB certified utility meter available as an optional config).
  • Interface Language Support: English standard (other custom languages available upon request).

Safety & Physical

  • Safety Protections: Overvoltage, undervoltage, overload, leakage current, overtemperature, grounding protection, transient overvoltage, short circuit, automatic fault self-diagnosis, isolation detection, immersion protection, and smoke alarm.
  • Enclosure Protection Rating: IP55 weather resistance.
  • Impact Protection Rating: IK10 for Human Machine Interface (HMI) and Internal Control Boards (ICB) housing.
  • Anti-Corrosion Shell Specification: Meets standard C4 anti-corrosion environmental criteria.
  • Operating Temperature Range: -30C to +65C (Linear power derating starts above 55C).
  • Storage Temperature Range: -40C to +70C.
  • Relative Humidity Levels: Less than 95% RH (Non-condensing).
  • Maximum Operational Altitude: Up to 2000 meters.
  • Acoustic Noise Rating: Less than or equal to 70 dB at a 3-meter distance under full load output.
  • Cooling Infrastructure Configurations: Available with active Liquid Cooling or Forced Air Cooling systems.
  • Installation Mounting Configuration: Floor-standing / Ground-mounted stationary cabinet assembly.
  • Physical Cabinet Dimensions (Without Cable Management W x H x D): 850 x 2050 x 800 mm.
  • Physical Cabinet Dimensions (With Cable Management W x H x D): 850 x 2120 x 800 mm.
  • Total Unit Weight: Less than or equal to 880 kg.
  • Standard Charging Cable Length: 5 meters standard (6m, 7m, or custom lengths available upon request).
  • Cable Management System: Optional mechanical cable suspension track assembly.
  • Certifications & Production Compliance: CE, CB, PTB, IEC 61851-1, IEC 61851-21-2, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, ISO 15118-1, ISO 15118-2, ISO 15118-3, DIN 70121.
  • Emergency Controls: Dedicated physical red emergency stop button.
