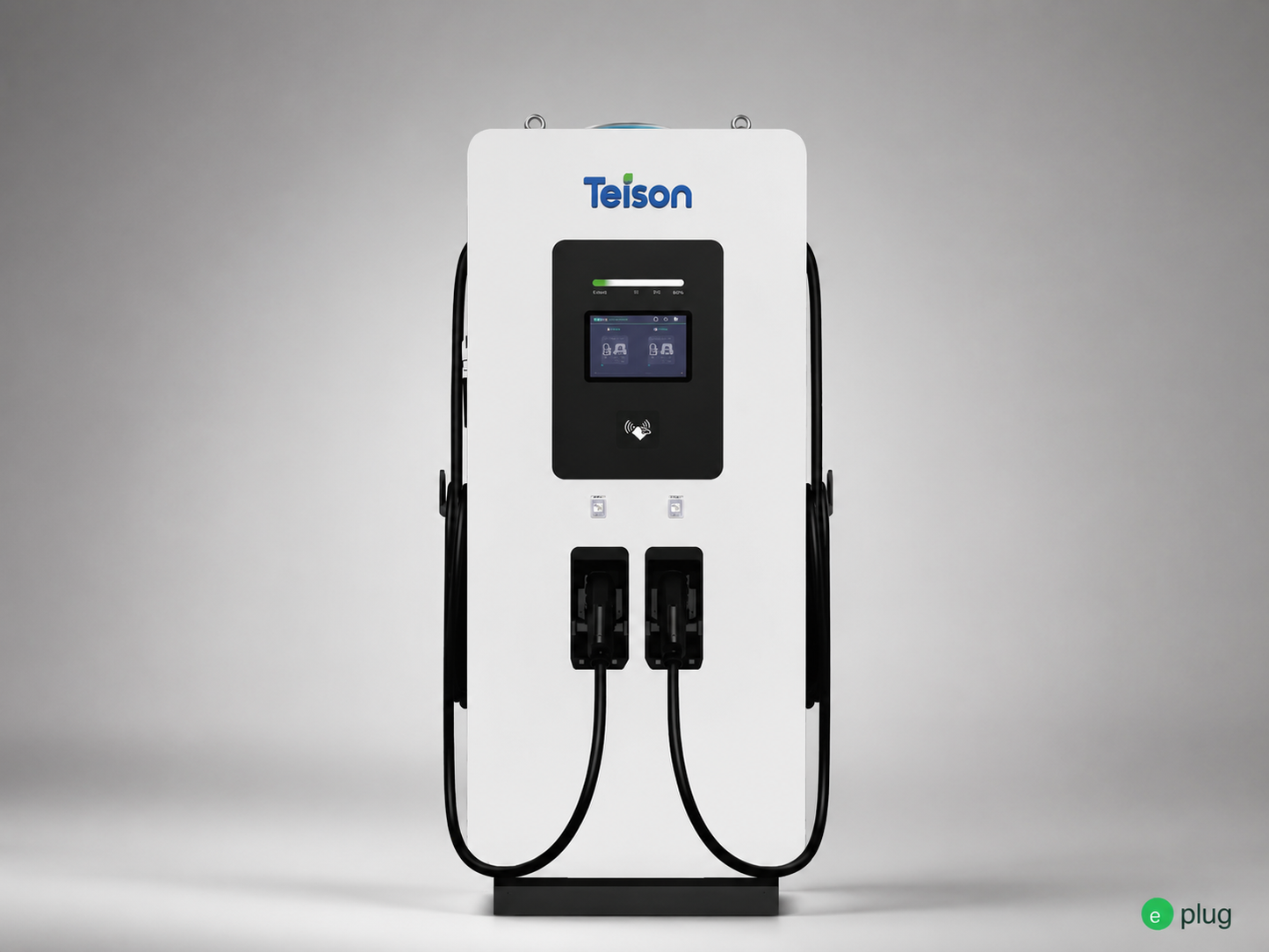

Teison Pro Lite DC Fast Charging Station 60-80 kW

Teison Pro Lite DC Fast Charging Station 60-80 kW

TSN-60DC-SxS-PL

Charging Power
Connector configuration
Request a Quote

Compact, Modular High-Power DC Charger for Urban & Commercial Networks

The Teison Pro Lite DC Fast Charging Station (60 kW to 80 kW Edition) brings efficient Level 3 rapid charging down to a highly optimized space-saving floor layout. Built to easily integrate into standard parking spaces, this high-performance station delivers scalable continuous output capacities from 60 kW up to 80 kW. Operating at a peak efficiency exceeding 95%, it features flexible multi-connector options to service several vehicles simultaneously, making it an ideal choice for businesses looking to launch high-speed charging without intensive footprint requirements.

Key Features:

  • Adaptable Power Layouts: Available in flexible 60 kW and 80 kW configurations to seamlessly match the current electrical constraints of your location.
  • Multi-Standard Output Options: Highly versatile setup allows customizable configurations supporting 2 active outputs (any dual combination of CCS2, CCS1, GB/T, CHAdeMO, and NACS) or 3 active outputs by adding a dedicated Type 2 AC line.
  • Ultra-Wide Voltage Delivery: Supplies an expansive output voltage range from 150 to 1000 VDC, ensuring full compatibility with next-generation high-voltage EVs and delivery fleets.
  • High-Current Air Cooling: Advanced forced-air thermal design permits a high maximum outlet connector current of 250A without complex maintenance needs.
  • All-Weather Protection Architecture: Certified to IP55 ingress and IK10 structural impact standards alongside specialized C4-level high anti-corrosion protection for long-term outdoor survival.
  • Smart Fleet Capabilities: Native compliance with ISO 15118 and DIN 70121 protocols guarantees smooth plug-and-play communication and dynamic load-balancing control.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Recommended Installation Sites:

  • Commercial Offices & Corporate Fleets: Supply highly efficient, quick-turnaround DC top-ups for company cars, logistics fleets, and executive parking pools.
  • Urban Business Lots & Retail Parks: Enhance shopper engagement at supermarkets and lifestyle centers by offering mid-speed fast charging while they browse.
  • Hotel, Hospitality & Premium Valet Parking: Provide premium amenities for guests who require accelerated charging capabilities over shorter stays.
  • Public Parking Garages & Shared Transit Hubs: Maximum utility for multi-unit residential structures and mixed commercial environments where wall space is unavailable.
View full details

Technical Specifications

Power & Input

  • Input Power Grid: Three Phase 3P + N + PE
  • Input Voltage Range: Three Phase 400 VAC plus or minus 10%
  • Input Frequency: 50 or 60 Hz
  • Maximum Rated Input Current: 96A / 159A (for 60 kW version) or 128A / 191A (for 80 kW version)
  • Maximum System Input Power: 63 kW / 106 kW (for 60 kW version) or 84 kW / 127 kW (for 80 kW version)
  • AC Earthing Infrastructure: TN-C, TN-S, TN-C-S, TT
  • Power Factor: Greater than or equal to 0.99
  • Total Harmonic Distortion (THD): Less than or equal to 5%
  • Standby Power Consumption: 100 W

Output Performance

  • Nominal DC Power Options: 60 kW or 80 kW
  • Optional Integrated AC Output: 43 kW AC optional configuration
  • Output Voltage Range: 150 to 1000 VDC
  • Maximum System Output Current: DC 200A / AC 63A (for 60 kW version) or DC 250A / AC 63A (for 80 kW version)
  • Connector Output Current Options: DC 150A / 200A optional (for 60 kW) or DC 150A / 200A / 250A optional (for 80 kW); AC 32A / 63A optional
  • Number of Connector Outlets: 2 outputs (Any two combinations of CCS2, CCS1, GB/T, CHAdeMO, NACS) or 3 outputs (adding Type 2 AC)
  • Supported Vehicle Connectors: CCS2, CCS1, GB/T, CHAdeMO, NACS, Type 2
  • Peak Conversion Efficiency: Greater than 95%
  • Voltage Regulation Accuracy: Less than or equal to plus or minus 0.5%
  • Current Regulation Accuracy: Less than or equal to plus or minus 1%

Connectivity & Interface

  • Standard Network Connectivity: Ethernet, Wi-Fi
  • Optional Network Connectivity: 4G LTE wireless network module
  • Communication Protocol: OCPP 1.6J (supports future firmware upgrade to OCPP 2.0.1)
  • User Interface Screen: 10.1-inch interactive LCD Touchscreen display
  • User Authentication Methods: RFID Card, QR Code, Mobile Application
  • Optional Authentication Terminal: POS payment hardware integration
  • Energy Metering Configuration: Standard CE meter configuration (MID-certified meter optional)
  • Interface Language Support: English standard (other custom languages available upon request)

Safety & Physical

  • Safety Protections: Overvoltage, undervoltage, overload, leakage current, overtemperature, short circuit, automatic fault self-diagnosis, and transient overvoltage protection
  • Enclosure Protection Rating: IP55
  • Impact Protection Rating: IK10 for Human Machine Interface (HMI) housing
  • Anti-Corrosion Casing Specification: Meets standard C4 anti-corrosion environmental criteria
  • Operating Temperature Range: -30C to +50C (Linear power derating starts above 50C)
  • Storage Temperature Range: -40C to +70C
  • Relative Humidity Levels: Less than 95% RH (Non-condensing)
  • Maximum Operational Altitude: Up to 2000 meters
  • Acoustic Noise Rating: Less than or equal to 70 dB at a 3-meter distance under full load output
  • Cooling System Infrastructure: Forced air cooling system
  • Installation Mounting Configurations: Floor-standing / Ground-mounted installation
  • Physical Cabinet Dimensions (W x H x D): 670 x 1600 x 485 mm (without cable management arm)
  • Total Unit Weight: 225 kg
  • Standard Charging Cable Length: 5 meters standard (6m, 7m, or custom lengths available upon request)
  • Certifications & Production Compliance: CE, CB, IEC 61851-1, IEC 61851-21-2, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, ISO 15118-1, ISO 15118-2, ISO 15118-3, DIN 70121
  • Emergency Controls: Dedicated physical red emergency stop button
