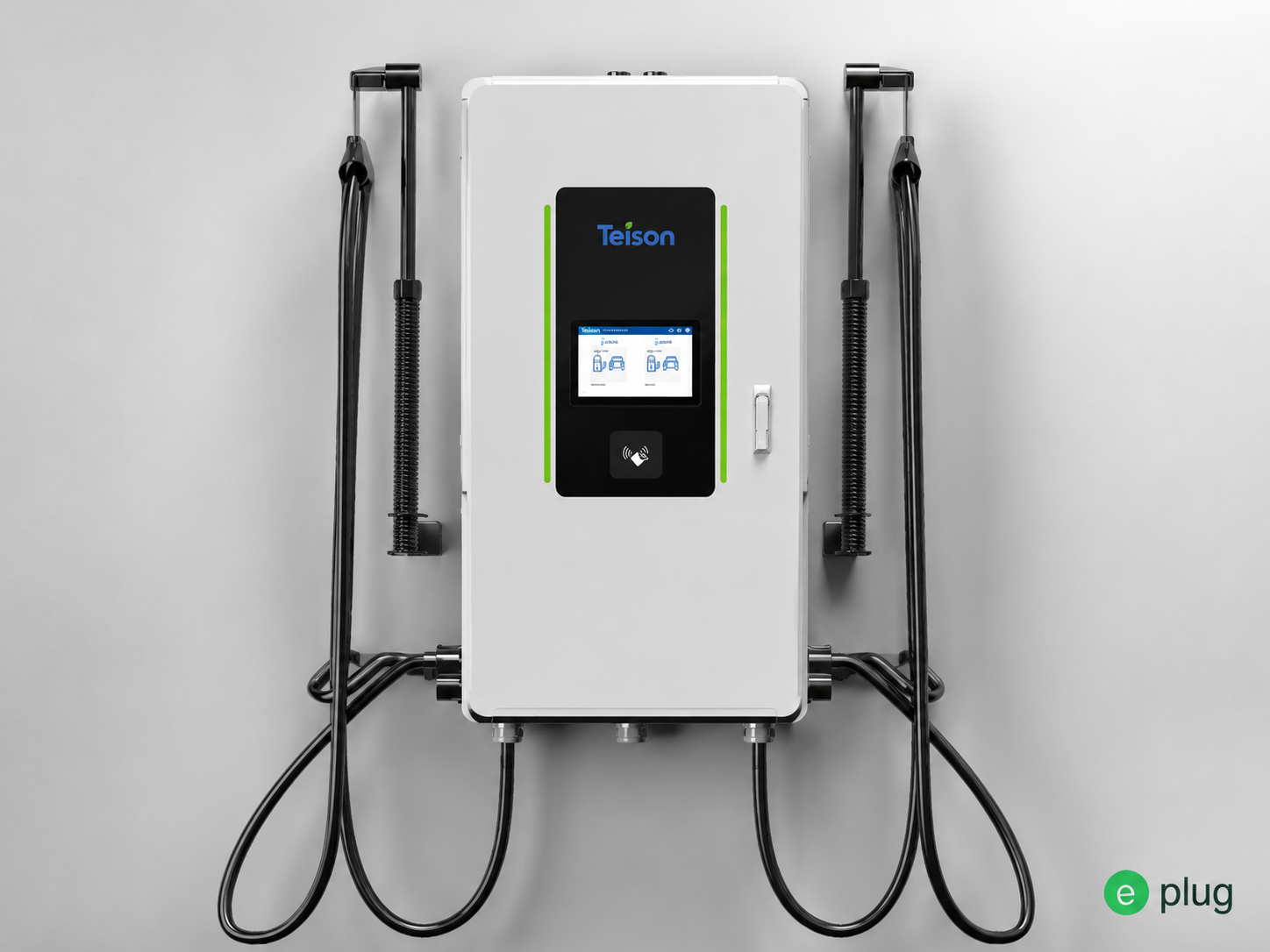

Teison Mini Prime Wallbox DC Fast Charging Station 60 kW

Teison Mini Prime Wallbox DC Fast Charging Station 60 kW

TSN-60DC-WxS

Connector configuration
Request a Quote

High-Power Modular Fast Charging in a Compact Wallbox or Pillar Setup

The Teison Mini Prime Wallbox DC Fast Charging Station (60 kW Edition) delivers premium Level 3 rapid charging power within an ultra-optimized, space-saving architectural footprint. Built to easily integrate into tight commercial spaces, this high-performance station delivers up to 60 kW of continuous DC output power directly to a dedicated CCS2 connector. Operating at a peak efficiency exceeding 96%, it provides an excellent way for commercial fleet yards, auto dealerships, and workplace parking lots to deploy dedicated high-speed DC charging without the extensive structural footprint or installation overhead of full-sized charging cabinets.

Key Features:

  • Dedicated High-Power Output: Provides a continuous maximum output power of up to 60 kW through a single premium CCS2 port to ensure fast and reliable vehicle turnaround times.
  • Ultra-Wide Voltage Range: Supplies an expansive output voltage range from 150 to 1000 VDC, ensuring seamless compatibility with high-voltage battery architectures and modern commercial vehicles.
  • High-Current Air Cooling: Advanced forced-air cooling technology permits a high continuous connector outlet current of 150A, with an optional boost capability up to 200A.
  • Whisper-Quiet Operation: Engineered to maintain a low operational acoustic noise level of 65 dB or less under maximum full-load output.
  • Premium Outdoor Resilience: Certified to IP55 ingress and IK10 structural impact standards alongside specialized C4-level high anti-corrosion protection for rugged long-term outdoor use.
  • Smart Energy Balancing: Full out-of-the-box support for ISO 15118 and DIN 70121 protocols guarantees smooth communication and efficient integration with on-site load management networks.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Recommended Installation Sites & Use Cases:

  • Commercial Offices & Corporate Fleets: Supply highly efficient, quick-turnaround DC top-ups for company cars and delivery vehicle pools.
  • Automotive Dealerships & Service Centers: Rapidly charge customer vehicles post-maintenance or prepare demo vehicles for back-to-back test drives.
  • Urban Business Lots & Retail Parks: Enhance shopper engagement by offering convenient fast charging while visitors browse on-site businesses.

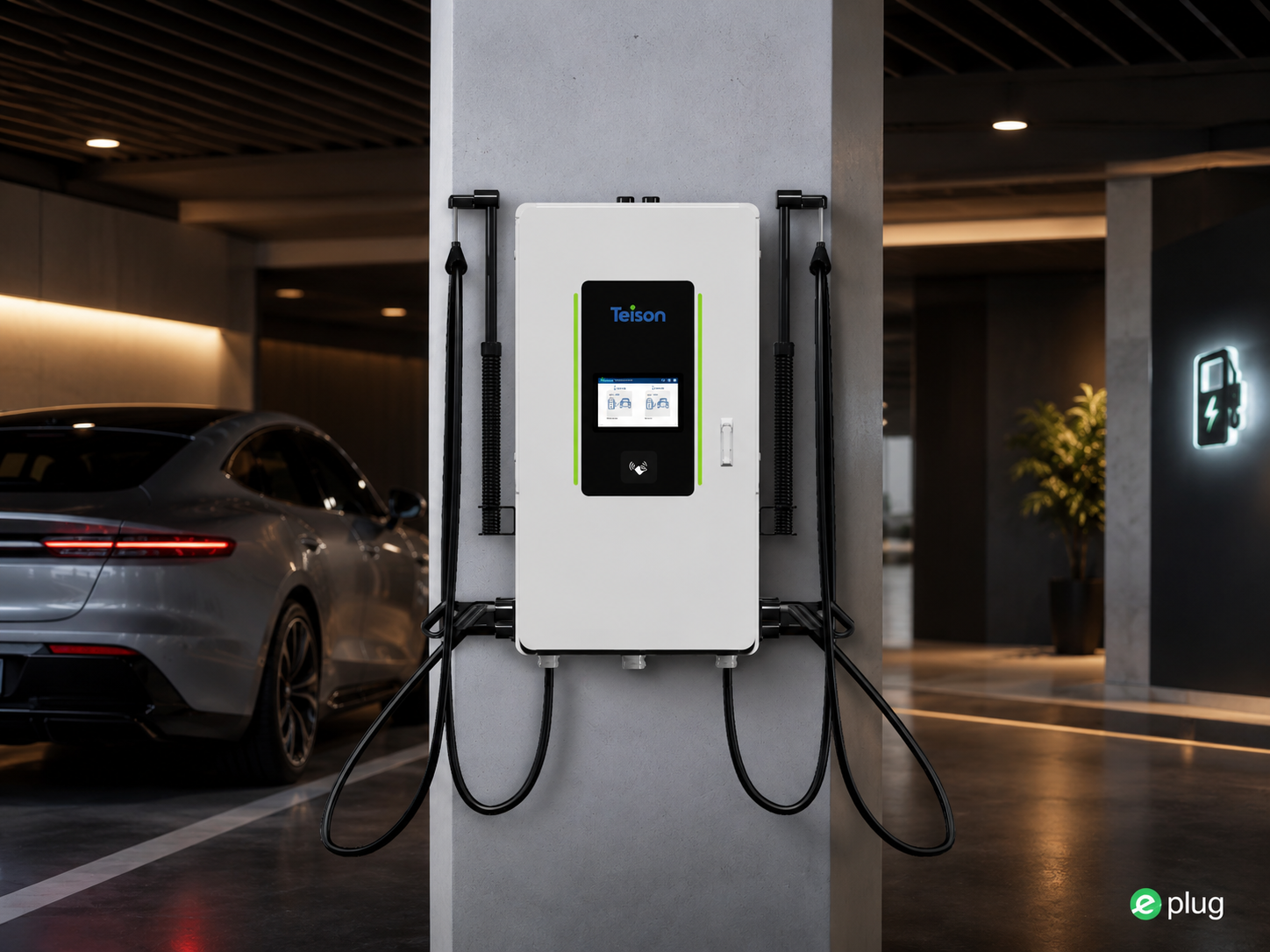

  • Restricted Space Parking Structures: Perfect for narrow parking garage configurations, structural columns, or building walls where large floor cabinets cannot fit.
View full details

Technical Specifications

Power & Input

  • Input Power Grid Type: Three Phase 3P + N + PE.
  • Input Voltage Range: Three Phase 400 VAC plus or minus 10%.
  • Input Frequency: 50 or 60 Hz.
  • Maximum Rated Input Current: Three Phase 96A.
  • Maximum System Input Power: 63 kW.
  • AC Earthing Networks Supported: TN-C, TN-S, TN-C-S, TT.
  • Power Factor: Greater than or equal to 0.99.
  • Total Harmonic Distortion (THD): Less than or equal to 5%.
  • Standby Power Consumption: 100 W.

Output Performance

  • Nominal Power Output: 60 kW DC.
  • Output Voltage Range: 150 to 1000 VDC.
  • Maximum System Output Current: 200A.
  • Standard Connector Output Current: 150A (200A Optional configuration).
  • Standard Connector Configuration: 1 x CCS2 Port (Single Output model TSN-60DC-WxS).
  • Alternative Multi-Standard Capabilities: Customizable as a dual-output unit supporting combinations of CCS2, CCS1, GB/T, CHAdeMO, and NACS.
  • Peak Conversion Efficiency: Greater than 96%.
  • Voltage Regulation Accuracy: Less than or equal to plus or minus 0.5%.
  • Current Regulation Accuracy: Less than or equal to plus or minus 1%.

Connectivity & Interface

  • Standard Network Connectivity: Ethernet, Wi-Fi.
  • Optional Network Gateway: 4G LTE wireless network gateway module.
  • Communication Protocol: OCPP 1.6J (Supports future firmware upgrade to OCPP 2.0.1).
  • User Interface Screen: 10.1-inch interactive LCD Touchscreen display.
  • User Authentication Methods: RFID Card, QR Code, Mobile Application.
  • Optional Payment Authentication: POS payment terminal integration.
  • Energy Metering Configuration: Standard CE meter configuration (MID-certified meter optional).
  • Interface Language Support: English standard (other custom languages available upon request).

Safety & Physical

  • Safety Protections: Overvoltage, undervoltage, overload, leakage current, overtemperature, insulation monitoring, short circuit, automatic fault self-diagnosis, transient overvoltage, tilt/dump protection, and smoke alarm.
  • Enclosure Protection Rating: IP55.
  • Impact Protection Rating: IK10 for Human Machine Interface (HMI) housing.
  • Anti-Corrosion Casing Specification: Meets standard C4 anti-corrosion environmental criteria.
  • Operating Temperature Range: -30C to +55C (Linear power derating starts above 55C).
  • Storage Temperature Range: -40C to +70C.
  • Relative Humidity Levels: Less than 95% RH (Non-condensing).
  • Maximum Operational Altitude: Up to 2000 meters.
  • Acoustic Noise Rating: Less than or equal to 65 dB at a 3-meter distance under full load output.
  • Cooling System Infrastructure: Forced air cooling system.
  • Installation Mounting Configurations: Wall-mounted installation or floor-mounted installation via an optional mounting column / pedestal.
  • Physical Cabinet Dimensions (W x H x D): 680 x 1250 x 275 mm (without cable management arm and pedestal column).
  • Total Unit Weight: 180 kg.
  • Standard Charging Cable Length: 5 meters standard (6m, 7m, or custom lengths available upon request).
  • Cable Management System: Integrated mechanical cable suspension track included in standard configuration.
  • Certifications & Production Compliance: CE, CB, IEC 61851-1, IEC 61851-21-2, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3.
  • Emergency Controls: Dedicated physical red emergency stop button.
