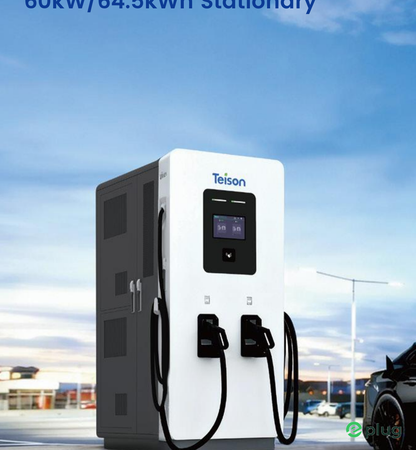

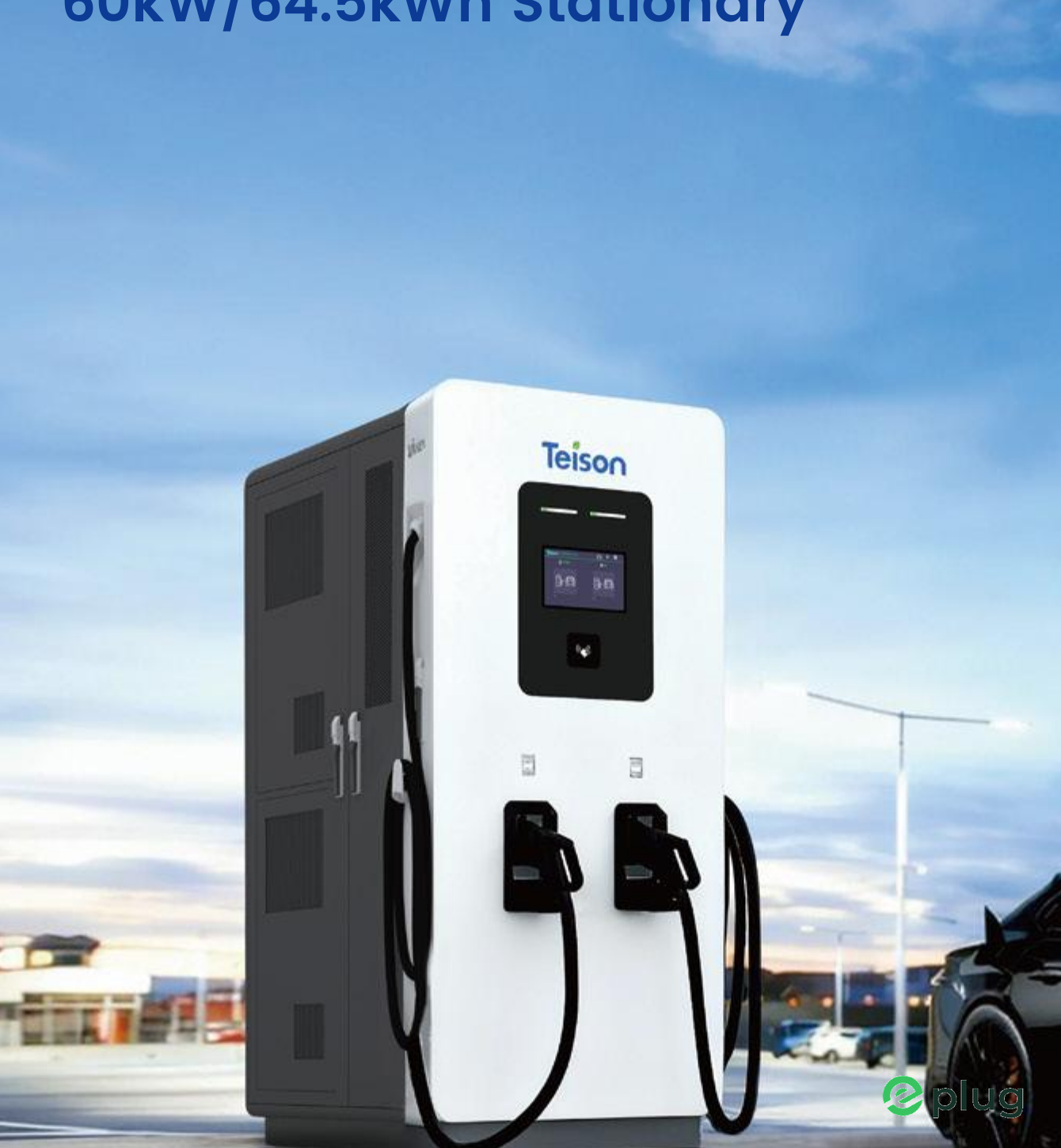

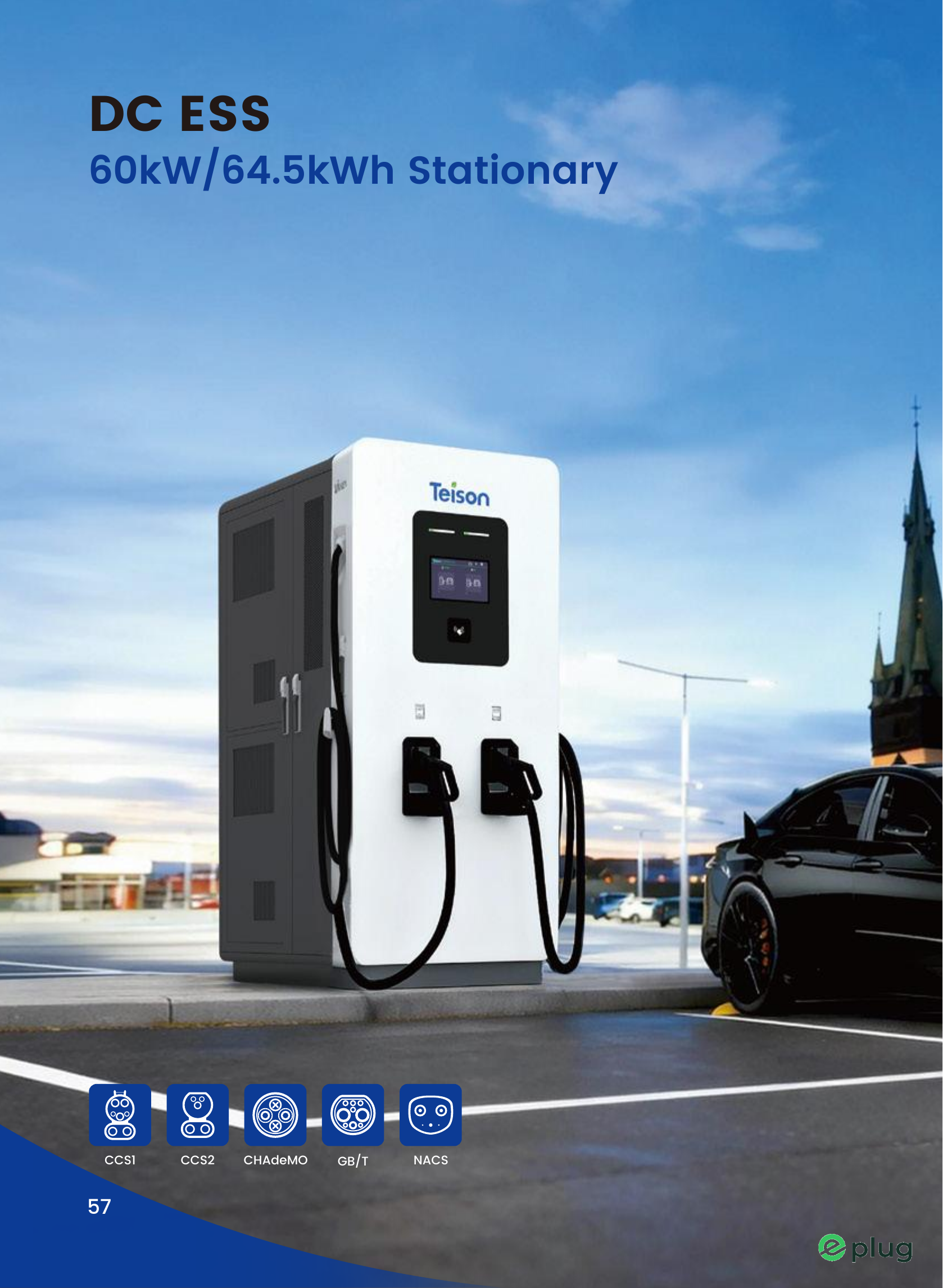

Teison ESS DC Fast Charging Station 60 kW with storage 64.5 kWh Street

Teison ESS DC Fast Charging Station 60 kW with storage 64.5 kWh Street

TSN-60DCESS-SxD

Request a Quote

Stationary Energy Storage & High-Voltage Public DC Charging Station

The Teison ESS DC Fast Charging Station (60 kW / 64.5 kWh Street Stationary Edition) is a permanent, high-capacity hybrid infrastructure asset designed for urban grids, public curbsides, and commercial highway hubs. By combining a long-lasting 64.5 kWh Lithium Iron Phosphate (LiFePO4) battery storage system with a 60 kW Level 3 DC fast charger, this unit easily delivers robust charging capabilities independent of peak grid power stress. It features multi-standard connector choices, versatile smart energy dispatching frameworks, and an optional advertising screen for public monetization.

Key Features:
  • Stationary Battery Energy Storage: Integrates a high-density 64.5 kWh battery assembly to run localized buffering workflows that provide high-speed DC charging from limited power grid inputs.
  • Smart Hybrid Charging Matrix: Features multi-mode framework distribution letting the station draw directly from the grid, run entirely off the storage batteries, or provide combined output for optimized flexibility.
  • High-Voltage DC Performance: Supplies up to 60 kW of continuous DC power with a broad voltage delivery range spanning from 200V to 1000V DC to match heavy fleet and passenger cars.
  • Flexible Multi-Standard Configuration: Accommodates dual-port customized layouts across a choice array of structural standards including CCS2, CCS1, GB/T, CHAdeMO, and NACS.
  • Incremental Advertising Revenue: Engineered with an optional digital advertising screen display embedded into the main outdoor structural block.
  • Rugged Public Construction: Heavy-duty ground cabinet features certified IP55 weather defense, IK10 structural impact protection, an aerosol fire extinguishing setup, and immersion security protection.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Recommended Installation Sites:
  • Public Curbsides & Municipal Street Hubs: Deploy dependable Level 3 DC fast charging directly onto city streets and public avenues without major electrical grid overhauls.
  • High-Demand Urban Highway Plazas: Minimize vehicle rest turnaround intervals for city travelers, multi-route commuters, and passenger transports.
  • Commercial Retail & Supercenter Parking Lots: Capitalize on high public visibility and unlock passive media income using the optional digital advertising screen.
  • Workplaces & Industrial Fleet Depots: Peak-shave energy consumption bills by charging the battery bank at off-peak rates and discharging into fleet vehicles during peak operational hours.

Battery & Energy Storage System

  • Total Battery Bank Capacity: 64.5 kWh.
  • Usable Battery System Energy: 61.3 kWh (calculated at 95% Depth of Discharge).
  • Nominal Battery Bank Voltage: 614.4V DC.
  • Internal Battery Cell Material Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Maximum Battery Recharge Continuous Power: 30 kW.
  • Maximum Battery Discharge Continuous Power: 30 kW.
  • Battery Cell Recharge Current Rate: 0.5C (Equivalent to 50A continuous).
  • Battery Cell Discharge Current Rate: 0.5C (Equivalent to 50A continuous).
  • Battery System Cycle Life Rating: Greater than or equal to 6000 cycles (calculated at 25C room temperature, 80% Depth of Discharge).
View full details

Technical Specifications

Power & Input

  • Input Power Grid Connection: Three Phase 3P + N + PE.
  • Input AC Voltage Range: Three Phase 400 VAC plus or minus 10%.
  • Nominal Rated Input Current: Three Phase 96A.
  • Maximum System Input Power: 63 kW.
  • Input Frequency Compatibility: 50 or 60 Hz.
  • Input Power Factor Rating: Greater than or equal to 0.99.
  • Grid Conversion Efficiency: Greater than or equal to 95%.
  • Total Harmonic Distortion (THD): Less than or equal to 5%.

Output Performance

  • Nominal Charging Power Output: Max. 60 kW DC.
  • DC Output Voltage Range: 200V to 1000V DC.
  • Maximum System DC Output Current: 200A.
  • Standard Connector DC Current: 200A (150A optional configuration available).
  • Number of Connector Outlets: 2 outputs (supports any two combinations of CCS2, CCS1, GB/T, CHAdeMO, or NACS).
  • Supported Vehicle Connectors: CCS2, CCS1, GB/T, CHAdeMO, NACS.
  • DC Voltage Accuracy: Less than or equal to plus or minus 0.5%.
  • DC Current Accuracy: Less than or equal to plus or minus 1%.

Connectivity & Interface

  • Standard Network Connectivity: Ethernet, Wi-Fi.
  • Optional Network Connectivity: 4G LTE wireless network module.
  • Communication Protocol Standards: OCPP 1.6J JSON (supports future firmware upgrade to OCPP 2.0.1).
  • User Interface Screen: 10.1-inch interactive LCD Touchscreen display.
  • User Authentication Methods: RFID Card, QR Code, or Mobile Application access.
  • Optional User Authentication: POS payment terminal integration.
  • Energy Metering Configuration: Standard built-in CE meter included (MID-certified utility meter available as an optional config).
  • Interface Language Support: English standard (other custom languages available upon request).

Safety & Physical

  • Safety Protections: Overvoltage, undervoltage, overload, leakage current, overtemperature, grounding protection, transient overvoltage, short circuit, automatic fault self-diagnosis, isolation detection, tilt protection, and immersion protection.
  • Fire Safety Infrastructure: Integrated composite detector aerosol extinguishing agent fire suppression system.
  • Solar Interface Connectivity: Optional photovoltaic solar terminal input capability.
  • Enclosure Protection Rating: IP55 weather resistance.
  • Impact Protection Rating: IK10 for Human Machine Interface (HMI) and Internal Control Boards (IKB).
  • Operating Temperature Range: -25C to +50C (Linear power derating starts above 45C).
  • Storage Temperature Range: -40C to +70C.
  • Relative Humidity Levels: Less than 95% RH (Non-condensing).
  • Maximum Operational Altitude: Up to 2000 meters.
  • Acoustic Noise Level: Less than or equal to 70 dB at a 3-meter distance under full load output.
  • Cooling System Infrastructure: Choice configuration between Forced Air Cooling or active Air Conditioning.
  • Installation Mounting Configurations: Floor-standing / Ground-mounted stationary cabinet assembly.
  • Physical Cabinet Dimensions (W x H x D): 900 x 2050 x 1200 mm (without optional cable management tracking arm).
  • Total Unit Weight: 1300 kg.
  • Standard Charging Cable Length: 5 meters standard (6m, 7m, or custom lengths available upon request).
  • Cable Management System: Optional mechanical cable tracking suspension track.
  • Digital Media Screen: Optional external advertising video screen integration.
  • Certifications & Production Compliance: CE, CB, MSDS, UN38.3, IEC 61851-1, IEC 61851-21-2, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3.
  • Emergency Controls & Interface Indicators: Smoke alarm, visual warning light bar, and dedicated physical red emergency stop button.
