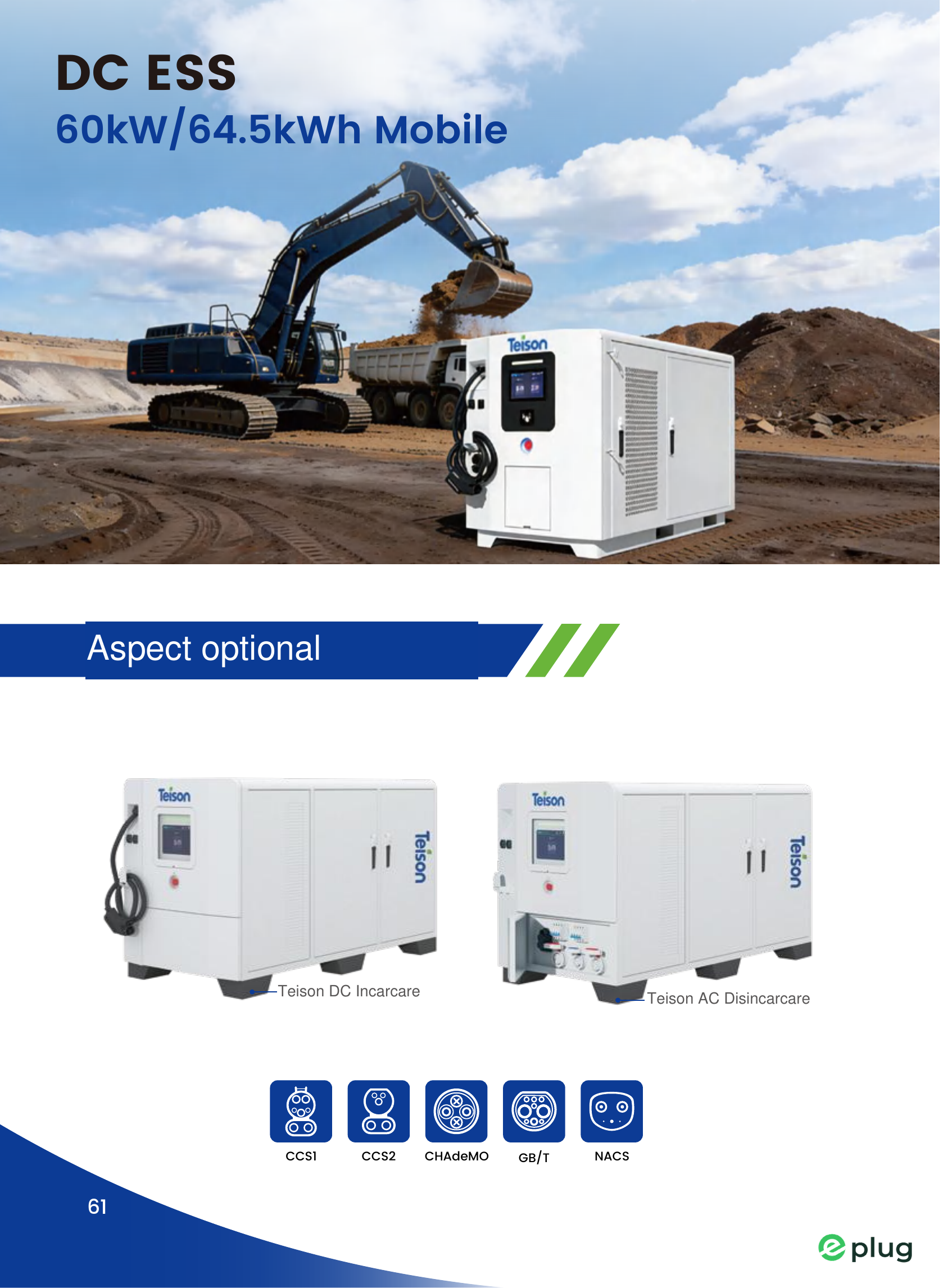

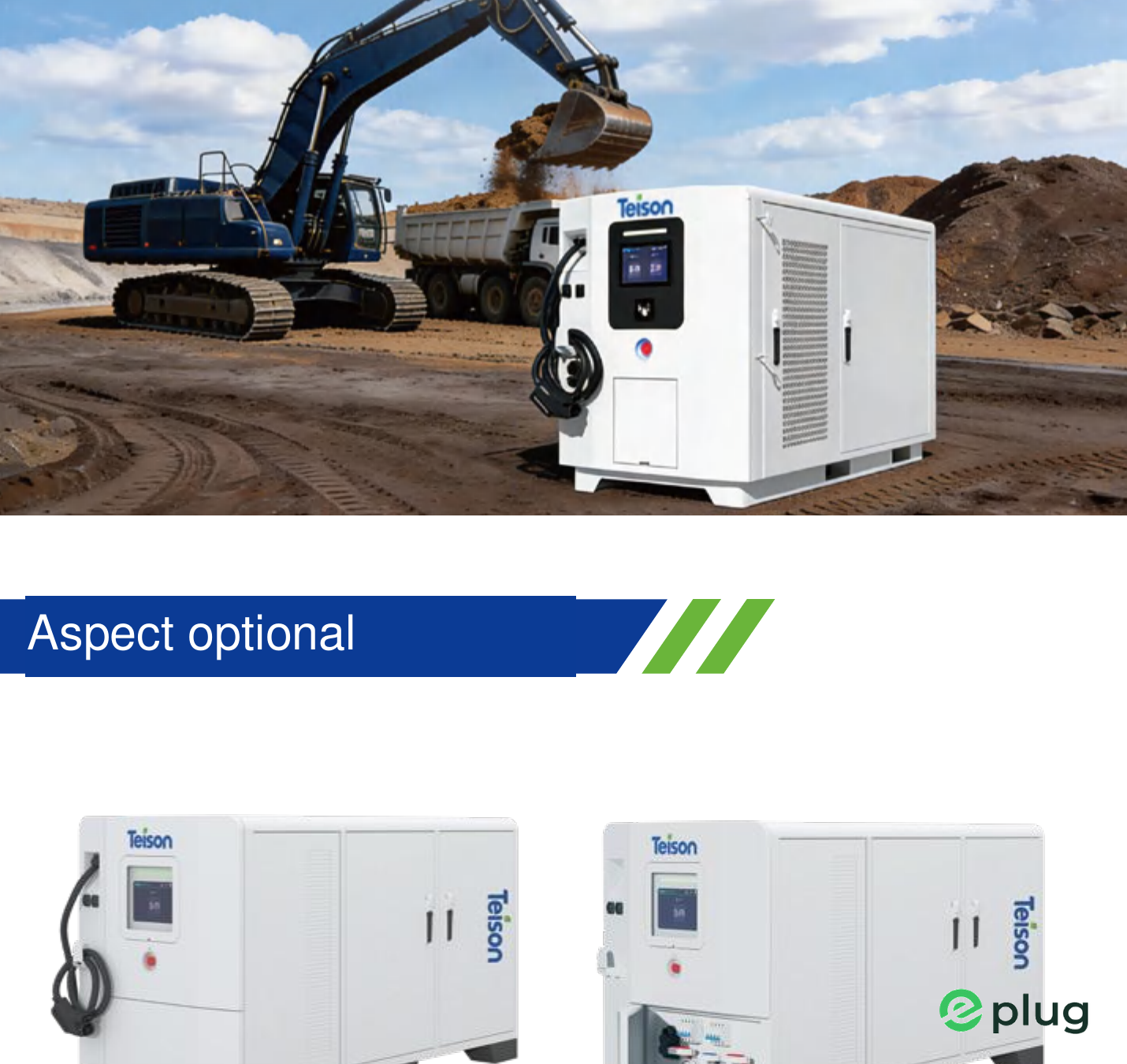

Teison ESS DC Fast Charging Station 60 kW with storage 64.5 kWh Mobile

Teison ESS DC Fast Charging Station 60 kW with storage 64.5 kWh Mobile

TSN-60DCESS-MxD

Request a Quote

Mobile Energy Storage System & High-Power DC Fast Charging Solution

The Teison ESS DC Fast Charging Station (60 kW / 64.5 kWh Mobile Edition) is a cutting-edge, grid-independent mobile energy solution designed for ultra-flexible charging deployment. Integrating a robust 64.5 kWh lithium iron phosphate battery system with a 60 kW Level 3 DC fast charger, this unit efficiently serves two primary scenarios: rapid emergency electric vehicle charging and high-capacity external AC power discharging. It provides a powerful method for emergency response teams, remote job sites, and heavy fleet yards to leverage high-speed DC power without costly infrastructure constraints.

Key Features:

  • Integrated Battery Energy Storage: Housed with a long-lasting 64.5 kWh lithium iron phosphate battery package that supports localized charging workflows independently of grid constraints.
  • Dual-Scenario Utility: Built to concurrently manage high-power DC EV charging and continuous external 3-phase AC power discharging.
  • High-Voltage DC Output: Supplies up to 60 kW of continuous DC power with a wide voltage delivery range from 200 to 1000 VDC, matching high-voltage passenger and commercial EVs.
  • Modular Operating Frameworks: Features intelligent operational architecture allowing the system to use grid power, internal battery blocks, solar arrays, or complementary multi-source paths to dispatch energy.
  • Top-Tier Fire Suppression Infrastructure: Engineered with a built-in safety layout containing a composite detector aerosol extinguishing agent system for enhanced operational security.
  • Rugged Protective Ingress: Outfitted with an IP55 rated weather-resistant casing and IK10 structural impact protection for deployment in harsh industrial environments.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Recommended Installation Sites & Use Cases:

  • Construction Zones & Mining Operations: Power heavy commercial electric equipment, tools, and support fleets on remote, un-grid-connected sites.
  • Roadside Rescue & Emergency Response Fleets: Deliver rapid mobile Level 3 emergency power top-ups directly to stalled fleet assets or highway transit users.
  • Peak Shaving Commercial Hubs: Mitigate expensive demand charges at business facilities by utilizing internal battery blocks during high-tariff operational periods.
  • Temporary EV Events & Pop-up Infrastructures: Offer fast charging configurations at festivals, track testing, or seasonal locations with low structural grid access.

Battery & Energy Storage System Specifications

  • Total Battery Bank Capacity: 64.5 kWh.
  • Usable Battery System Energy: 61.3 kWh (calculated at 95% Depth of Discharge).
  • Nominal Battery Bank Voltage: 614.4V DC.
  • Internal Battery Cell Material Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Maximum Battery Recharge Continuous Power: 30 kW.
  • Maximum Battery Discharge Continuous Power: 30 kW.
  • Battery Cell Recharge Current Rate: 0.5C (Equivalent to 50A continuous).
  • Battery Cell Discharge Current Rate: 0.5C (Equivalent to 50A continuous).
  • Battery System Cycle Life Rating: Greater than or equal to 6000 cycles (calculated at 25C room temperature, 80% Depth of Discharge).
View full details

Technical Specifications

Power & Input

  • Input Grid Connection Type: Three Phase 3P + N + PE.
  • Input AC Voltage Range: Three Phase 400 VAC plus or minus 10%.
  • Nominal Rated Input Current: Three Phase 96A.
  • Maximum System Input Power: 63 kW.
  • Input Frequency: 50 or 60 Hz.
  • Input Power Factor: Greater than or equal to 0.99.
  • Grid System Conversion Efficiency: Greater than 95%.

Output Performance

  • Nominal Charging Power Output: 60 kW DC.
  • DC Output Voltage Range: 200V to 1000V DC.
  • Maximum System DC Output Current: 200A.
  • Standard Connector DC Current: 200A (150A Optional configuration).
  • DC Port Configurations: 1 Output (Any choice connector including CCS2, CCS1, GB/T, CHAdeMO, or NACS).
  • External AC Discharge Rated Voltage: Three Phase 380V / 400V / 415V or Single Phase 220V / 230V / 240V.
  • External AC Discharge Phase Wire Layout: 3P + N + PE.
  • Maximum External AC Discharge Power: 30 kW.
  • DC Voltage Accuracy: Less than or equal to plus or minus 0.5%.
  • DC Current Accuracy: Less than or equal to plus or minus 1%.

Connectivity & Interface

  • Standard Network Connectivity Interfaces: Ethernet, Wi-Fi.
  • Optional Network Gateway Module: 4G LTE wireless network module.
  • Communication Protocol Standards: OCPP 1.6J JSON (Supports future firmware upgrade to OCPP 2.0.1).
  • User Interface Screen: 10.1-inch interactive LCD Touchscreen display.
  • User Authentication Frameworks: RFID Card, QR Code, or Mobile Application.
  • Optional Authentication Hardware: POS payment terminal integration.
  • Energy Metering Grid: Standard CE meter configuration (MID-certified meter optional).
  • Interface Language Support: English standard (other custom languages available upon request).

Safety & Physical

  • Safety Protections: Overvoltage, undervoltage, overload, leakage current, overtemperature, grounding protection, insulation monitoring, short circuit, and automatic fault self-diagnosis.
  • Fire Safety Infrastructure: Integrated composite detector aerosol extinguishing agent fire suppression system.
  • Solar Interface Connectivity: Optional photovoltaic solar terminal input capability.
  • Enclosure Protection Rating: IP55 weather resistance.
  • Impact Protection Rating: IK10 for Human Machine Interface (HMI) housing.
  • Operating Temperature Range: -25C to +50C (Linear power derating starts above 45C).
  • Storage Temperature Range: -40C to +70C.
  • Relative Humidity Levels: Less than 95% RH (Non-condensing).
  • Maximum Operational Altitude: Up to 2000 meters.
  • Cooling System Infrastructure: Choice configuration between Forced Air Cooling or dedicated active Air Conditioning.
  • Installation Mounting Configurations: Floor-standing / Ground-mounted heavy mobile skid deployment.
  • Physical Cabinet Dimensions (W x H x D): 1750 x 1200 x 950 mm (without active cable management tracking).
  • Total Unit Weight: 1100 kg.
  • Standard Charging Cable Length: 5 meters standard (6m, 7m, or custom lengths available upon request).
  • Certifications & Production Compliance: CE, CB, MSDS, UN38.3, IEC 61851-1, IEC 61851-21-2, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3.
  • Emergency Controls: Dedicated physical red emergency stop button.
