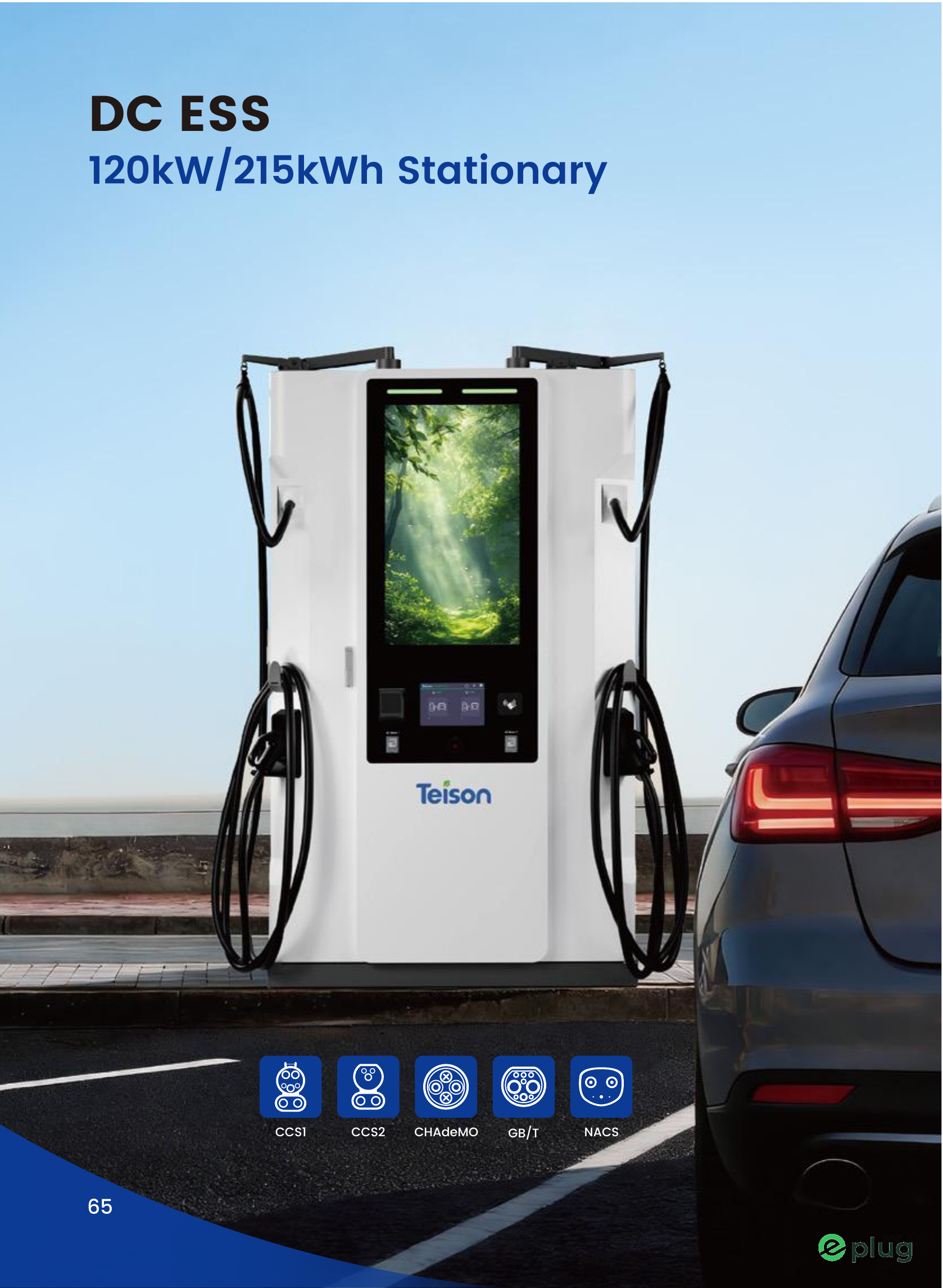

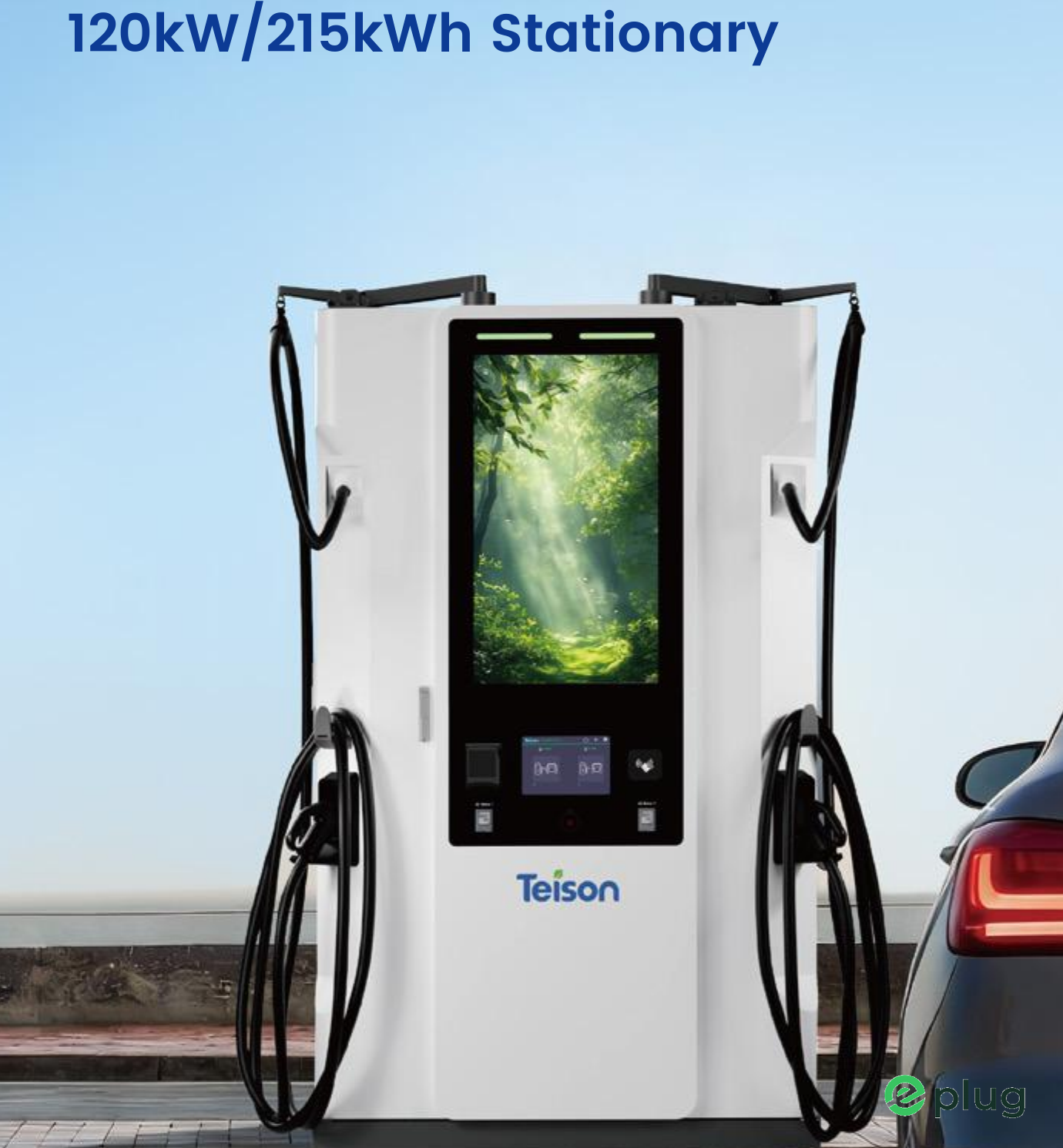

Teison ESS DC Fast Charging Station 120 kW with storage 215 kWh Street

Teison ESS DC Fast Charging Station 120 kW with storage 215 kWh Street

TSN-120DCESS-SxD

Request a Quote

High-Capacity All-In-One Energy Storage & Ultra-Fast DC Charging Platform

The Teison ESS DC Fast Charging Station (120 kW charging / 215 kWh storage) Street edition is a premium, heavy-duty hybrid infrastructure asset designed for high-turnover public hubs, logistics networks, and commercial industrial zones. By matching a massive 215 kWh Lithium Iron Phosphate battery storage core with a high-performance 120 kW Level 3 DC fast charger, this system provides unmatched charging flexibility even at locations experiencing severe grid restrictions. It supports multiple concurrent outputs, multi-source power distribution pathways, and automated smart management via modern backend software platforms.

Key Features:

  • Industrial-Scale Energy Storage: Houses a large 215 kWh long-life battery assembly to run localized storage buffers, enabling maximum fast charging without drawing extreme spikes from the power grid.
  • Intelligent Hybrid Energy Routing: Advanced framework engineering supports multi-mode operations, including combined grid and battery output, grid-only paths, or pure battery-stored power dispatch.
  • High-Power Level 3 DC Charging: Delivers up to 120 kW of continuous DC rapid power with an expansive output voltage range spanning from 200V up to 1000V DC.
  • Multi-Standard Output Customization: Dual-port layout allows customizable configurations across key international charging standards including CCS2, CCS1, GB/T, CHAdeMO, and NACS.
  • Elite Protection and Safety Build: Heavy-duty ground enclosure comes standard with an aerosol-based fire extinguishing agent system, smoke alarms, immersion safety barriers, and full IP55 weather proofing.
  • Smart Grid Synchronization: Full protocol compliance with ISO 15118 and DIN 70121 guarantees seamless plug-and-play charging alongside automated on-site dynamic load balancing.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Recommended Installation Sites:

  • Heavy Logistics Yards & Commercial Fleet Depots: Maintain constant turnaround times for massive distribution trucks, delivery vans, and transit fleets with minimal utility stress.
  • Highway Charging Stations & Travel plazas: Give cross-country drivers dependable high-speed Level 3 top-ups even during periods of peak network energy grid demand.
  • Retail Supercenters & Shopping Plazas: Monopolize premium public EV traffic and secure passive marketing returns using the optional digital advertising screen display integrations.
  • Industrial Manufacturing Parks: Safeguard your facility against high-tariff peak demand hours by charging the internal batteries at night and discharging during production peaks.

Battery & Energy Storage System

  • Total Battery Bank Capacity: 215 kWh standard (185 kWh optional variant available).
  • Usable Battery System Energy: 204.3 kWh at 215 kWh capacity, or 175.7 kWh at 185 kWh capacity (calculated at 95% Depth of Discharge).
  • Nominal Battery Bank Voltage: 665.6V DC.
  • Internal Battery Cell Material Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Maximum Battery Recharge Continuous Power: 100 kW standard (93 kW for the 185 kWh version).
  • Maximum Battery Discharge Continuous Power: 107.5 kW standard (93 kW for the 185 kWh version).
  • Battery Cell Recharge Current Rate: 0.5C / 150A standard (140A for the 185 kWh version).
  • Battery Cell Discharge Current Rate: 0.5C / 161.5A standard (140A for the 185 kWh version).
  • Battery System Cycle Life Rating: Greater than or equal to 6000 cycles (calculated at 25C room temperature, 80% Depth of Discharge).
View full details

Technical Specifications

Power & Input

  • Input Grid Connection Type: Three Phase 3P + N + PE.
  • Input AC Voltage Range: Three Phase 400 VAC plus or minus 10%.
  • Nominal Rated Input Current: Three Phase 160A.
  • Maximum System Input Power: 105 kW.
  • Input Frequency Compatibility: 50 or 60 Hz.
  • Input Power Factor Rating: Greater than or equal to 0.99.
  • Grid Conversion Efficiency: Greater than or equal to 95%.
  • Total Harmonic Distortion (THD): Less than or equal to 5%.

Output Performance

  • Nominal Charging Power Output: Max. 120 kW DC.
  • DC Output Voltage Range: 200V to 1000V DC.
  • Maximum System DC Output Current: 300A.
  • Connector DC Current Options: 300A standard (200A or 260A optional configuration available).
  • Number of Connector Outlets: 2 outputs.
  • Supported Vehicle Connectors: Any two combinations of CCS2, CCS1, GB/T, CHAdeMO, or NACS.
  • DC Voltage Accuracy: Less than or equal to plus or minus 0.6%.

Connectivity & Interface

  • Standard Network Connectivity: Ethernet, Wi-Fi.
  • Optional Network Connectivity: 4G LTE wireless network module.
  • Communication Protocol Standards: OCPP 1.6J JSON (supports future firmware upgrade to OCPP 2.0.1).
  • User Interface Screen: 10.1-inch interactive LCD Touchscreen display.
  • User Authentication Methods: RFID Card, QR Code, or Mobile Application access.
  • Optional User Authentication: POS payment terminal integration.
  • Energy Metering Configuration: Standard built-in CE meter included (MID-certified utility meter available as an optional config).
  • Interface Language Support: English standard (other custom languages available upon request).

Safety & Physical

  • Safety Protections: Overvoltage, undervoltage, overload, leakage current, overtemperature, grounding protection, transient overvoltage, short circuit, automatic fault self-diagnosis, and isolation detection.
  • Fire Safety Infrastructure: Integrated composite detector aerosol extinguishing agent fire suppression system.
  • Solar Interface Connectivity: Optional photovoltaic solar terminal input capability.
  • Enclosure Protection Rating: IP55 weather resistance.
  • Impact Protection Rating: IK10 for Human Machine Interface (HMI) and Internal Control Boards (IKB).
  • Operating Temperature Range: -25C to +50C (Linear power derating starts above 45C).
  • Storage Temperature Range: -40C to +70C.
  • Relative Humidity Levels: Less than or equal to 95% RH (Non-condensing).
  • Maximum Operational Altitude: Up to 2000 meters.
  • Cooling System Infrastructure: Choice configuration between Forced Air Cooling or active Air Conditioning.
  • Installation Mounting Configurations: Floor-standing / Ground-mounted stationary cabinet assembly.
  • Physical Cabinet Dimensions (W x H x D): 1640 x 2550 x 1610 mm (without optional cable management tracking arm).
  • Total Unit Weight: 3200 kg.
  • Standard Charging Cable Length: 5 meters standard (6m, 7m, or custom lengths available upon request).
  • Cable Management System: Optional mechanical cable tracking suspension track.
  • Digital Media Screen: Optional external advertising video screen integration.
  • Certifications & Production Compliance: CE, CB, MSDS, UN38.3, IEC 61851-1, IEC 61851-21-2, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3.
  • Emergency Controls: Dedicated physical red emergency stop button.
