ePlug

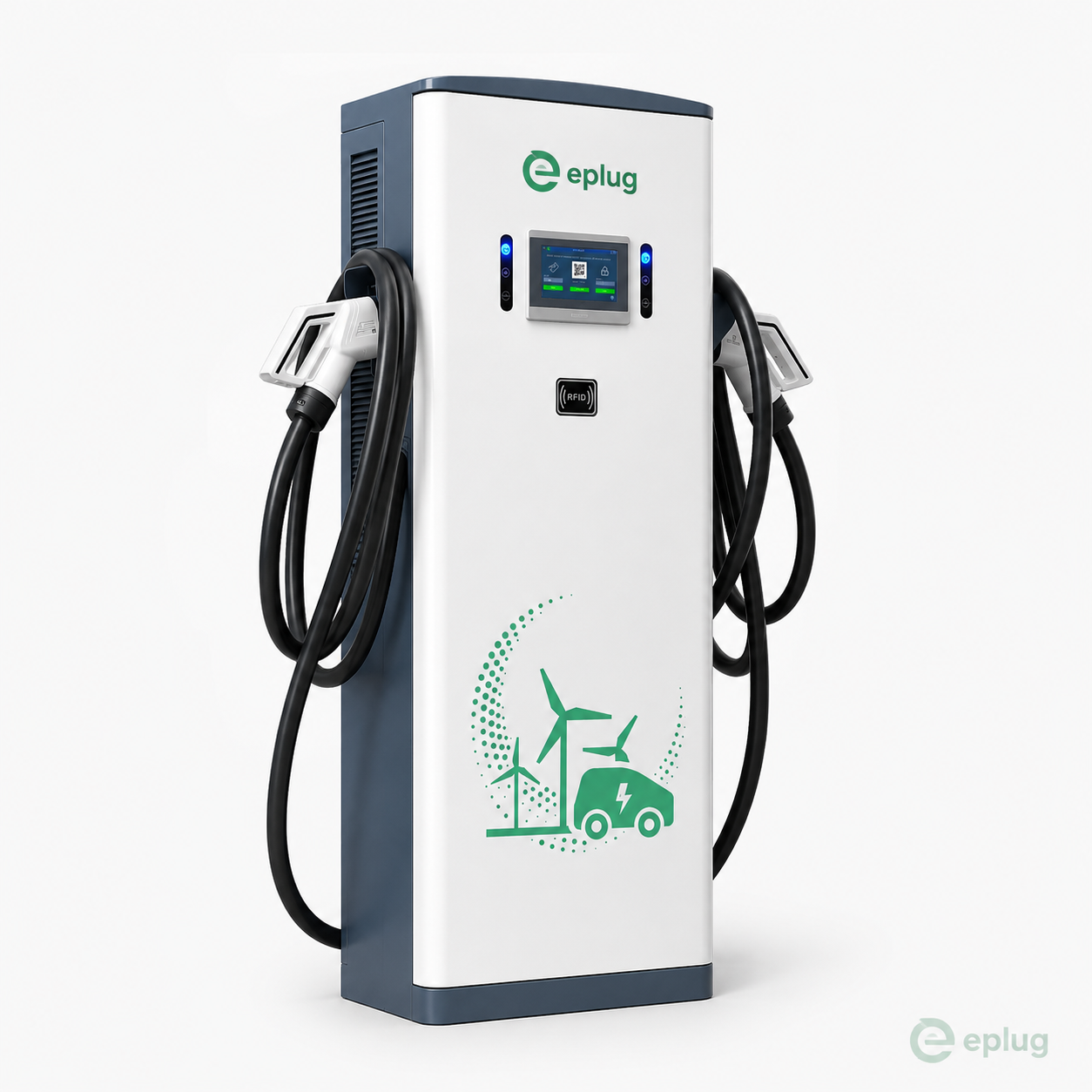

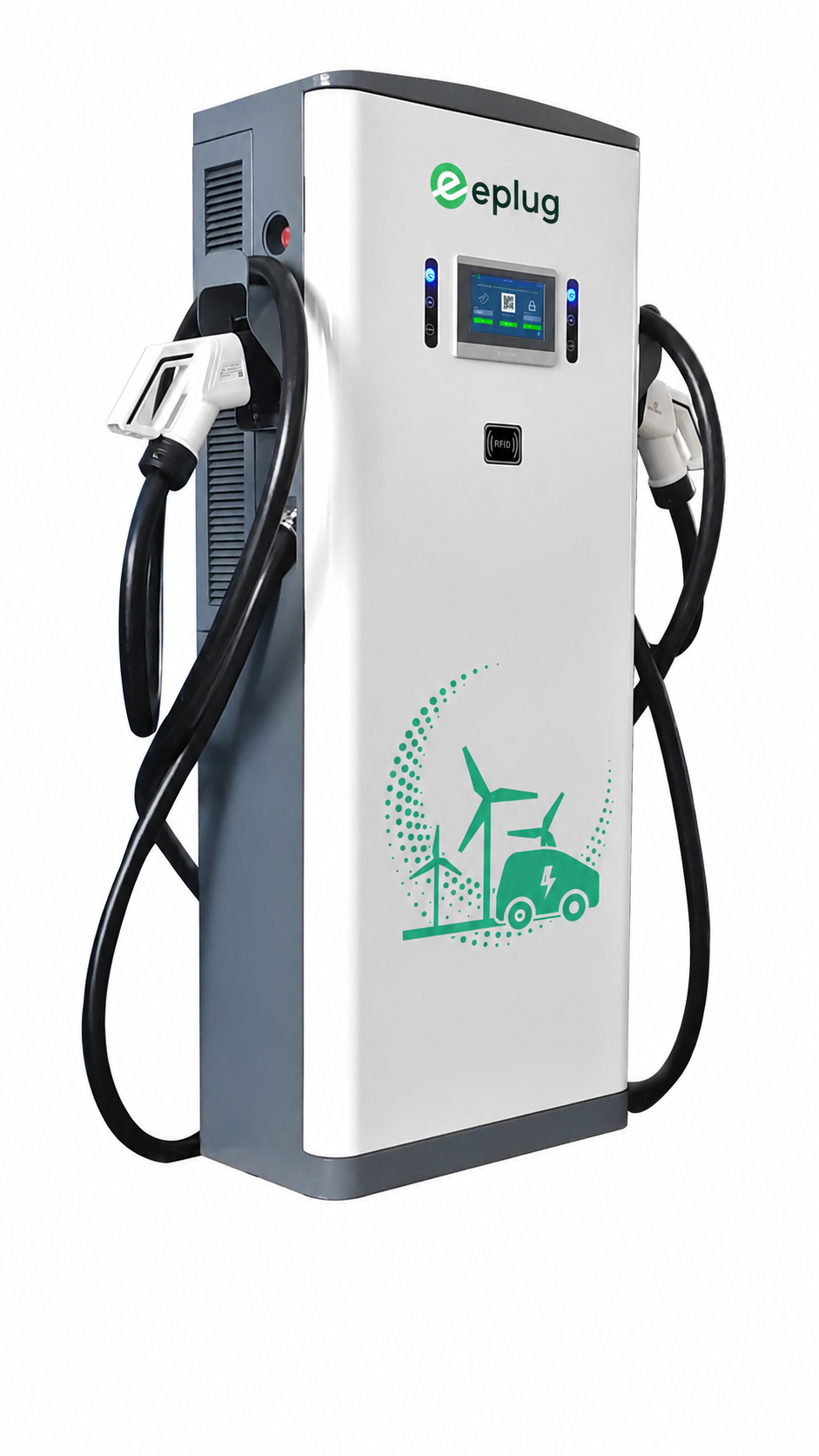

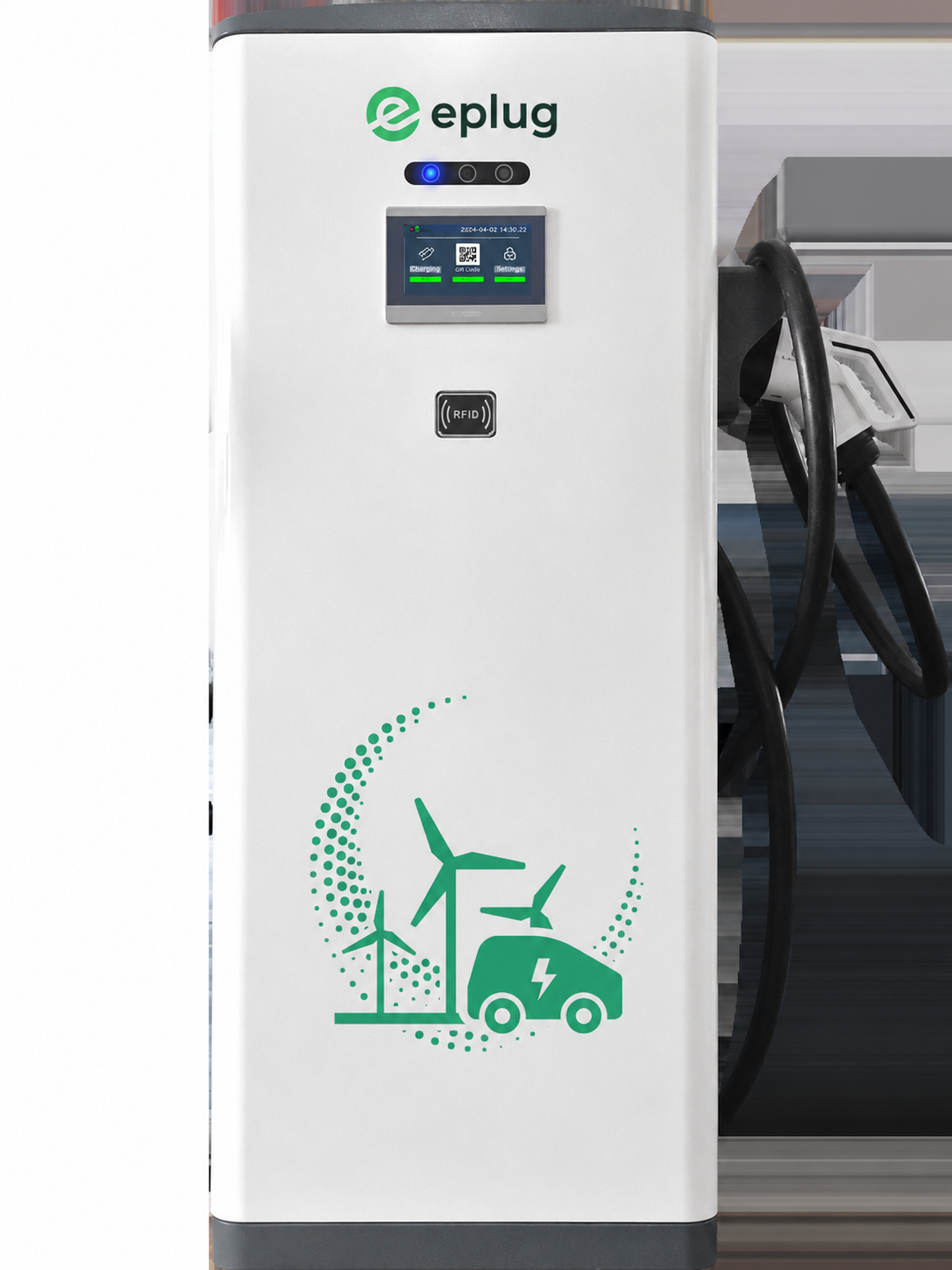

ePlug DC Fast Charging Station 60-80 kW

ePlug DC Fast Charging Station 60-80 kW

SKU:LSN-60DC-SxS

Charging Power
Connector configuration
Quantity

This DC fast charging station is designed to support high-demand EV charging environments, delivering rapid and efficient charging for modern electric vehicles.

With power output up to 60 kW / 80 kW, the system significantly reduces charging time, making it ideal for locations where speed and availability are critical.

The unit is available in single or dual gun configuration, allowing simultaneous charging and increased utilization in public or commercial settings.

Its floor-standing design ensures stability and visibility, making it suitable for integration into a wide range of environments, from retail and hospitality to fleet operations and public infrastructure.

Key Features

  • Fast charging power up to 60 kW (DC) / 80 kW (DC) depending on the configuration
  • Available in single or dual connector (gun) configuration
  • Compatible with major DC standards (CCS2 / optional CHAdeMO depending on configuration)
  • Intelligent power distribution for efficient charging
  • Built for continuous operation in demanding environments
  • Robust outdoor enclosure
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Designed for High-Traffic Locations

This charger is engineered for environments where multiple users require fast and reliable charging:

  • Public charging stations
  • Commercial parking areas
  • Highway and transit locations
  • Fleet depots
  • Shopping centers and hotels
  • Fuel stations transitioning to EV
  • Municipal projects

Scalable Charging Infrastructure

The system can be integrated into a broader EV charging network, supporting remote monitoring, usage tracking, and smart energy management.

This makes it a future-ready solution for businesses looking to expand their EV infrastructure.

View full details

Technical Specifications

Power & Input

  • Input voltage: 400V AC (3-phase)
  • Frequency: 50 Hz

Output Performance

  • Output power: 60 kW / 80 kW (configuration dependant)
  • Output type: DC fast charging
  • Connector type: CCS2 (optional CHAdeMO depending on configuration)
  • Number of connectors: 1 or 2 (single / dual gun)

Connectivity & Interface

  • Communication: OCPP 1.6
  • Display: Touchscreen / LCD interface

Safety & Physical

  • Efficiency: ≥ 95%
  • Protection rating: IP54
  • Operating temperature: -20°C to +50°C
  • Cooling method: Air cooling / forced ventilation
  • Installation type: Floor-standing
