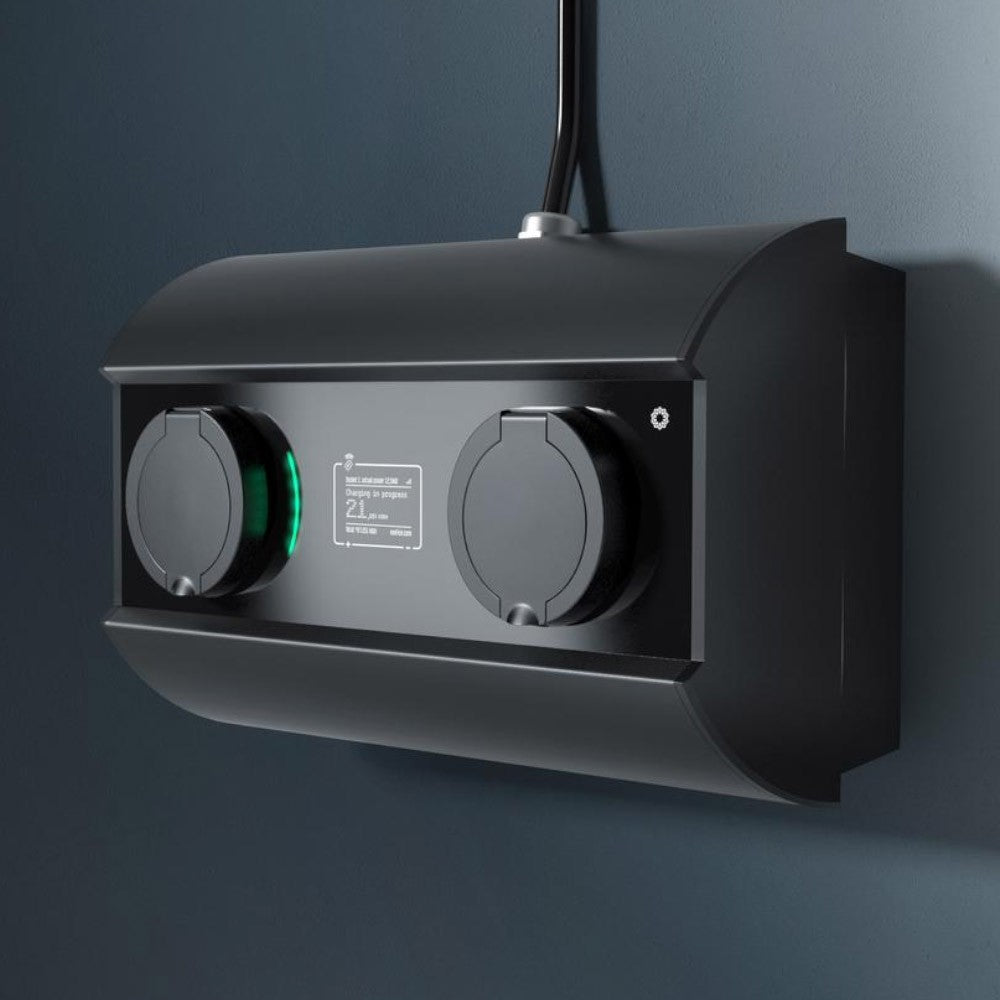

• WallBox / StreetBox DUO 2x22kWh AC Type 2 Negru

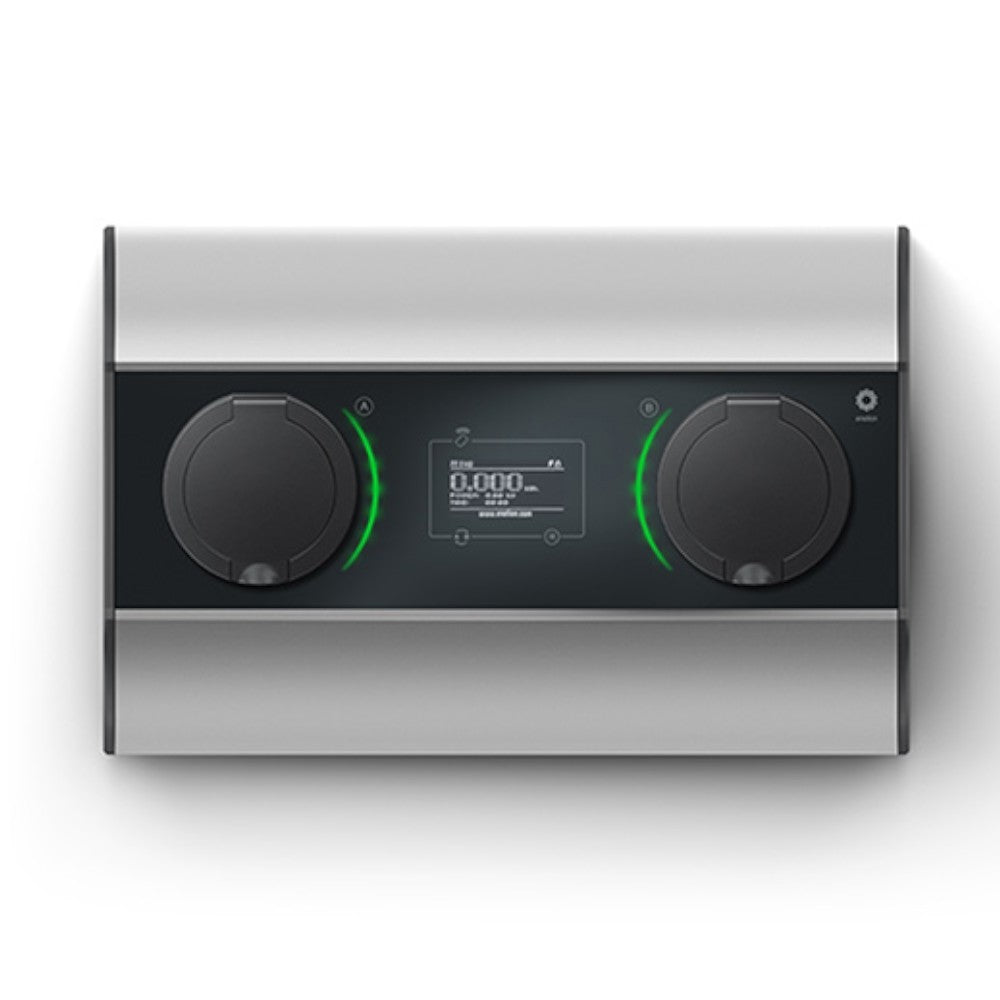

  • WallBox / StreetBox DUO 2x22kWh AC Type 2 Gri
1 4

Enelion

Enelion Wallbox Duo AC Charging Station 2x22 kW

Enelion Wallbox Duo AC Charging Station 2x22 kW

ESBDP-1

Request a Quote

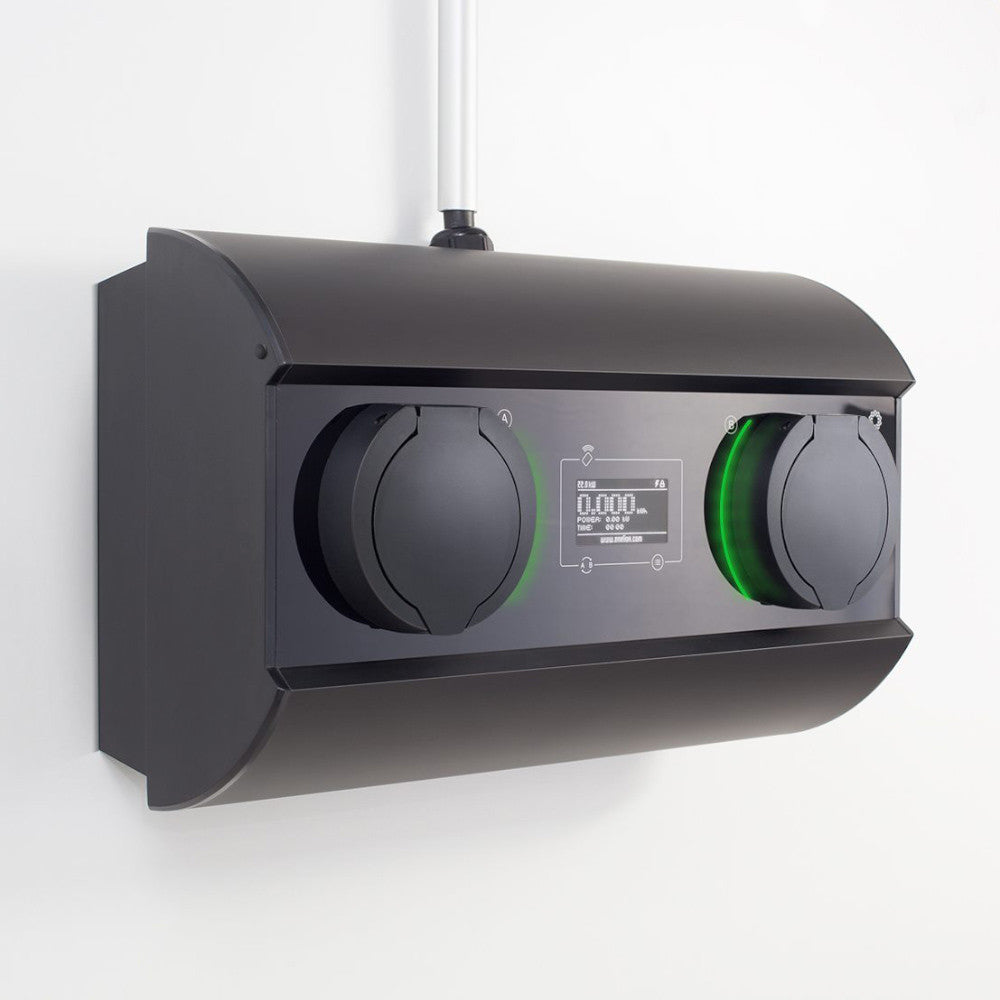

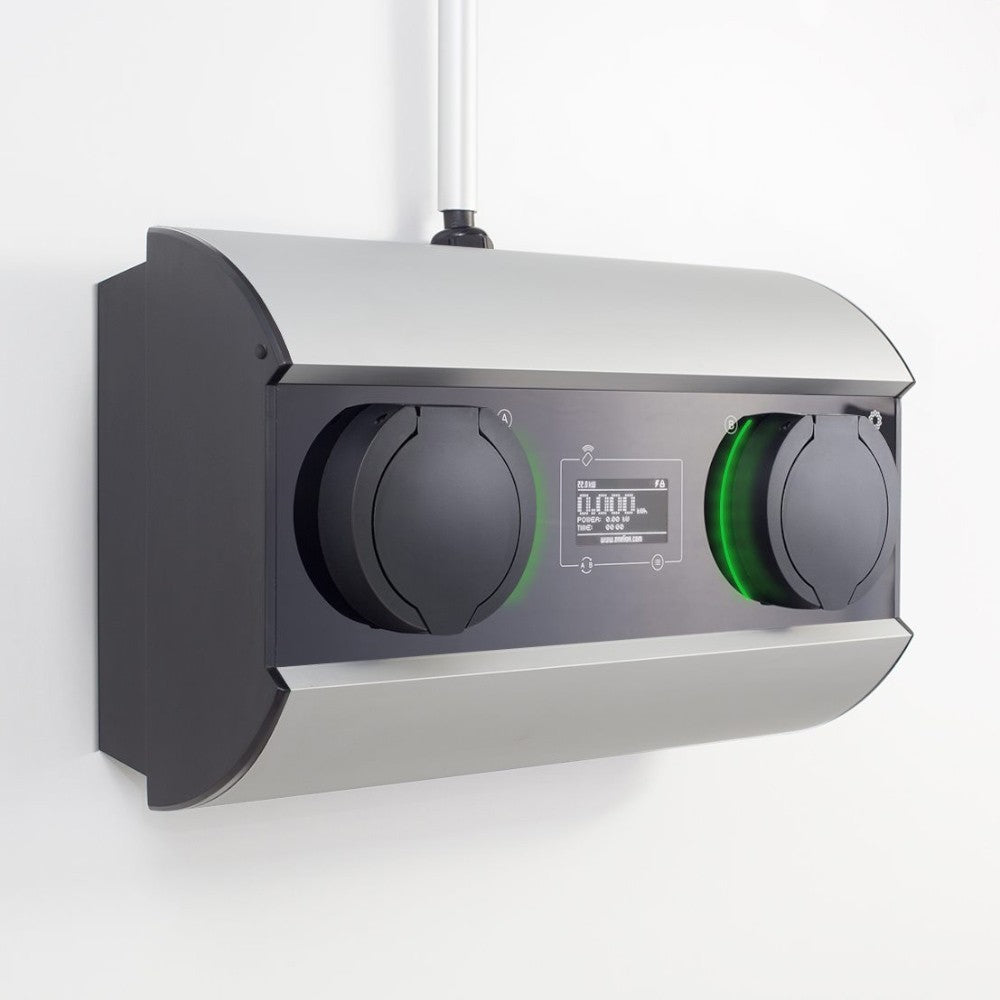

The Enelion Wallbox Duo AC Charging Station 2x22 kW is a professional charging station with two independent charging points, ideal for commercial parking areas, hotels, shopping centers, or corporate spaces.

Built on an aluminum structure with composite exterior material, featuring IP54 protection and IK10 impact resistance, it is designed to withstand intensive use.

Each socket allows programmable charging power between 1.7 kW and 22 kW per socket.

Key features:

  • 2 charging points Type 2 socket (Mode 3), silver-plated connectors
  • Plug & Charge
  • Access control via RFID cards
  • 2.5" OLED display
  • OCPP 1.6 online module – Ethernet, Wi-Fi, GSM
  • DLB – Dynamic Load Balancing – balancing charging power between multiple charging points
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Ideal for:

  • Public parking areas
  • Shopping centers
  • Office buildings
  • Hotels
  • Private charging networks
View full details

Technical Specifications

Power & Input

  • Input Voltage: 230V AC (single-phase) / 400V AC (three-phase)
  • Frequency: 50Hz
  • Power Output Options: 2 × 3.7kW / 2 × 7.4kW / 2 × 11kW / 2 × 22kW
  • Power Distribution: Dynamic Load Balancing between charging points

Output Performance

  • Charging Standard: AC Mode 3 charging
  • Connector Type: Dual Type 2 sockets with silver-plated contacts
  • Max Output Current: 2 × 16A / 2 × 32A (model dependent)
  • Access Control: Plug & Charge or RFID authentication

Connectivity & Interface

  • Communication Protocol: OCPP 1.6
  • Network Connectivity: Ethernet and Wi-Fi
  • Station Communication: CAN bus communication between stations
  • User Interface: OLED display with LED charging status indicators
  • Smart Features: PlugPoint online monitoring and mobile payment support

Safety & Physical

  • Housing Material: Aluminum structure with composite exterior panels
  • Protection Rating: IP54 (dust and water resistance), IK10 (impact resistance)
  • Operating Temperature: -25°C to +55°C
  • Humidity Range: 5% – 95% non-condensing
  • Protection Features: Overcurrent, overvoltage, short-circuit, and neutral loss protection
  • Mounting Type: Floor-standing installation with horizontal 4-point fixing system
  • Weight: 20 kg
