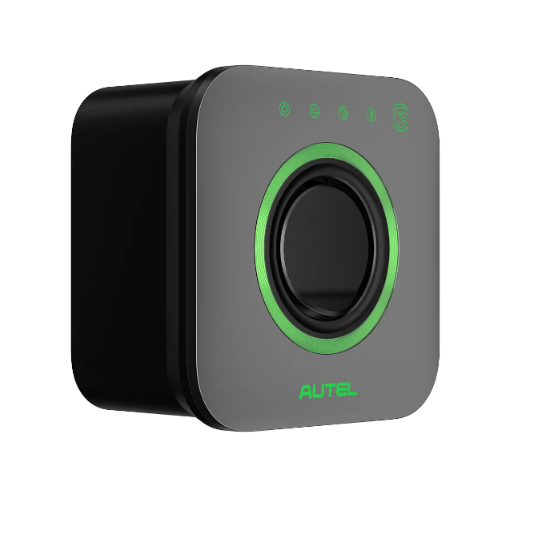

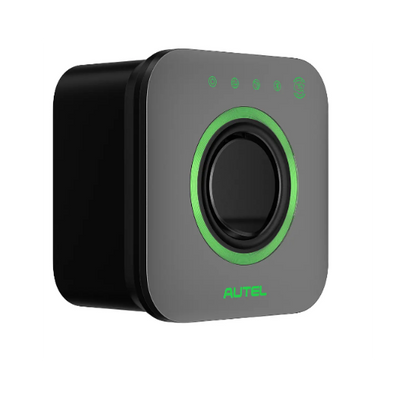

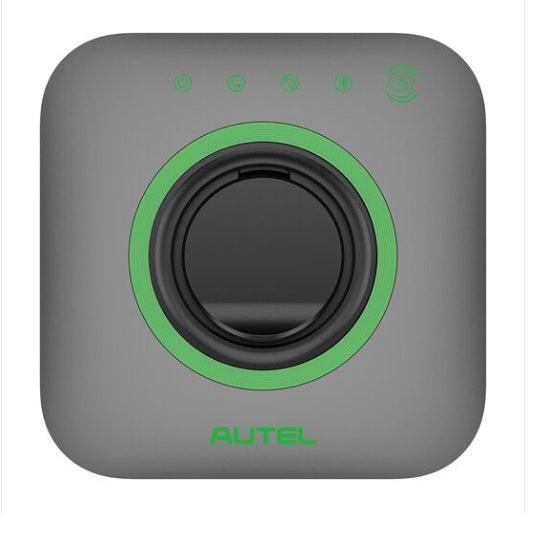

Autel MaxiCompact AC Charging Station 7.5-22 kW

Autel MaxiCompact AC Charging Station 7.5-22 kW

AUT-7.5AC-MCxS

4.504,00 RON
4.504,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Charging Power

Smart, Powerful, and Ready for the Future

The Autel MaxiCharger AC is the ideal smart charging solution for your electric vehicle, perfectly suited for both residential and commercial use. With a flexible power output of up to 7.5-22 kW, a compact design, and an advanced digital ecosystem, this charger gives you full control and maximum efficiency during every charging session.

Key Features:

  • Configurable Power: Delivers a maximum output of up to 7.5-22 kW, ensuring optimal charging speeds for modern electric vehicles.
  • Smart App Control: Manage charging sessions in real-time, monitor energy consumption, and configure the output current directly from your smartphone via the dedicated Autel Charge App.
  • Advanced Connectivity: Equipped with Bluetooth, Wi-Fi, Ethernet, and an RS485 interface for seamless connection to an energy meter.
  • Certified Energy Efficiency: High energy measurement accuracy (+/- 1.0%), backed by reputable certifications like Energy Star.
  • Top-Tier Security: Comprehensive integrated protections against overcurrent, overvoltage, and undervoltage, guaranteeing risk-free operation.
View full details

Technical Specifications

Power & Input

  • Input voltage: 240V (Single Phase), 380V (Three Phase)
  • Frequency: 50 Hz

Output Performance

  • Output Power Options: Up to 7.5 kW, 11 kW, 22 kW
  • Output Current: Adjustable via the mobile app from 6A up to 40A or 50A
  • Connector Variations: Type 2 (or SAE J1772 option)
  • Energy Measurement Accuracy: +/- 1.0% from 1% to full scale

Connectivity & Interface

  • Communication: Bluetooth, Wi-Fi, Ethernet, CAN, RS485
  • Communication Protocols: OCPP 1.6J (with later upgrade capability to OCPP 2.0.1)
  • User Interface: Autel Charge App / Autel Charge Cloud
  • User Authentication: Mobile App, AutoStart, or RFID card (Optional card reader: ISO 15693, ISO 14443, NFC)
  • Software Update: Secure Over-The-Air (OTA) updates

Safety & Physical

  • Protections: Integrated overcurrent, overvoltage, undervoltage, and surge protection.
  • Enclosure Protection Rating: NEMA 4 (High weather resistance).
  • Operating Temp: -40C to +55C (-40F to +131F).
  • Storage Temp: -40C to +85C (-40F to +185F).
  • Mounting: Wall or pedestal mounting.
  • Dimensions (H x W x D): 336 x 187 x 85 mm (13 x 7 x 3 in).
  • Total Weight: Between 5.9 kg (13 lbs) and 7.2 kg (15.9 lbs), depending on the model.
  • Certifications & Compliance: Energy Star, OpenADR 2.0b, UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916, FCC 15 Class B[cite: 1].
  • Warranty: 24 months[cite: 1].

Download Technical Sheet
