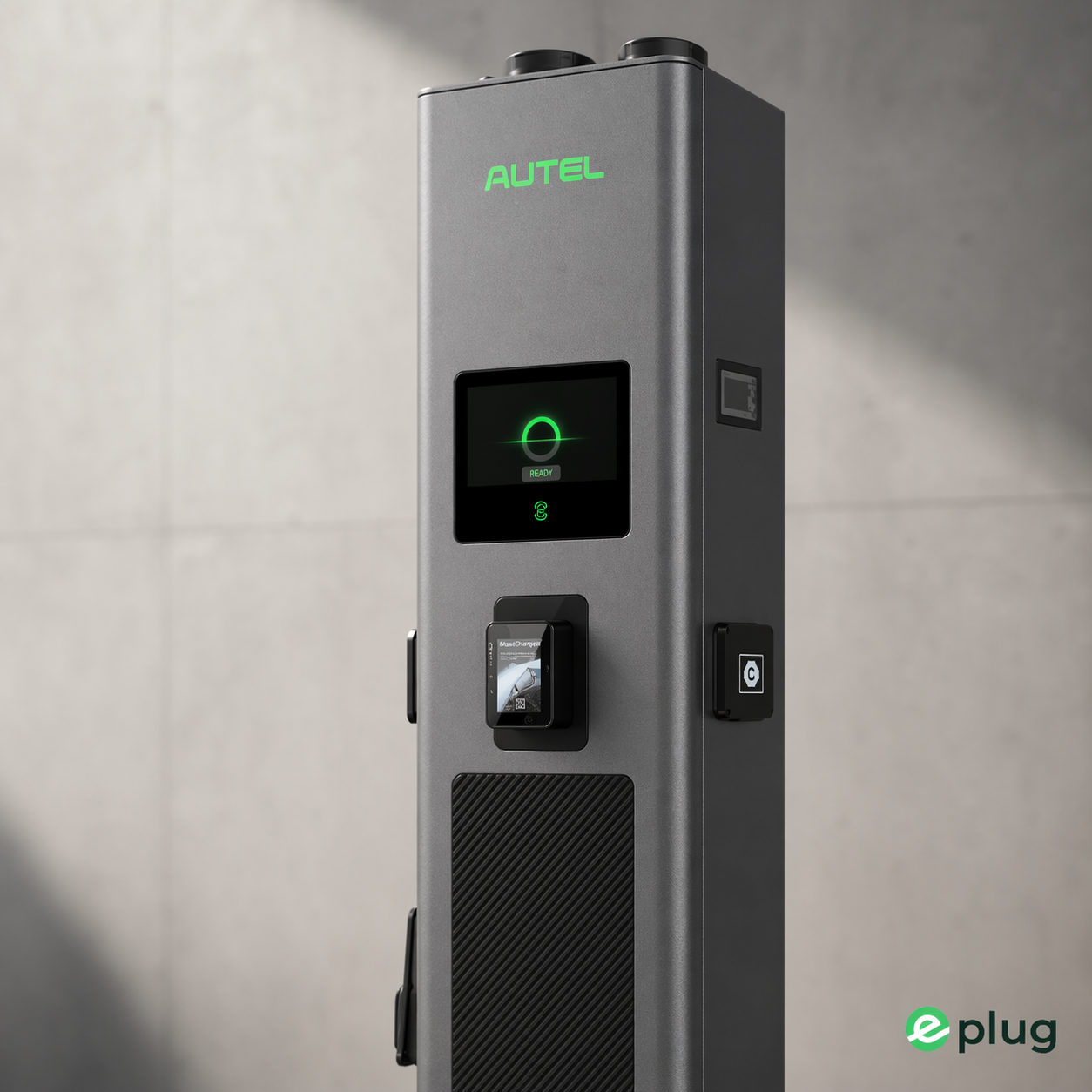

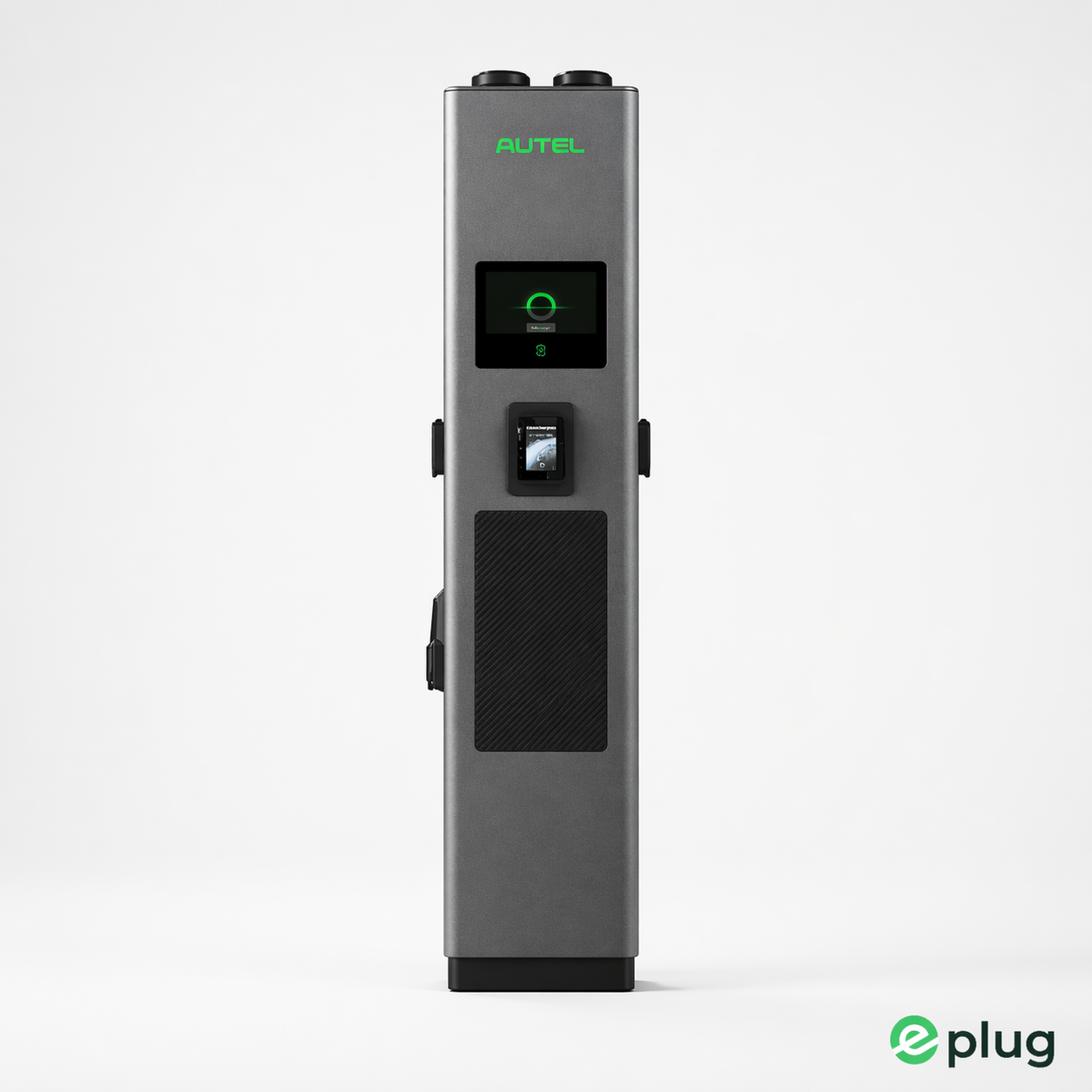

Autel MaxiCharger UltraStreet AC Charging Station 11-22 kW Socket

Autel MaxiCharger UltraStreet AC Charging Station 11-22 kW Socket

AUT-11AC-MCUSxD

20.212,00 RON
20.212,00 RON
Sale Sold out
Taxes included. A shipping quote will be sent separately after you complete your order.
Charging Power

Industry-Leading Dual Charging for Commercial Hubs

The Autel MaxiCharger AC UltraStreet is an exceptional, commercial-grade dual charging station designed to optimize public and fleet operations. Delivering high-power charging to two vehicles simultaneously from a single robust unit, this floor-standing station maximizes your space and accelerates your return on investment. With built-in ISO 15118 Plug and Charge functionality, it offers a seamless, premium charging experience for drivers.

Key Features:

  • Simultaneous Dual Charging: Delivers up to 22 kW of fast AC power per port, allowing two electric vehicles to charge efficiently at the same time.
  • Plug and Charge Ready: Supports the ISO 15118 standard for a hassle-free, automatic driver authentication and charging workflow.

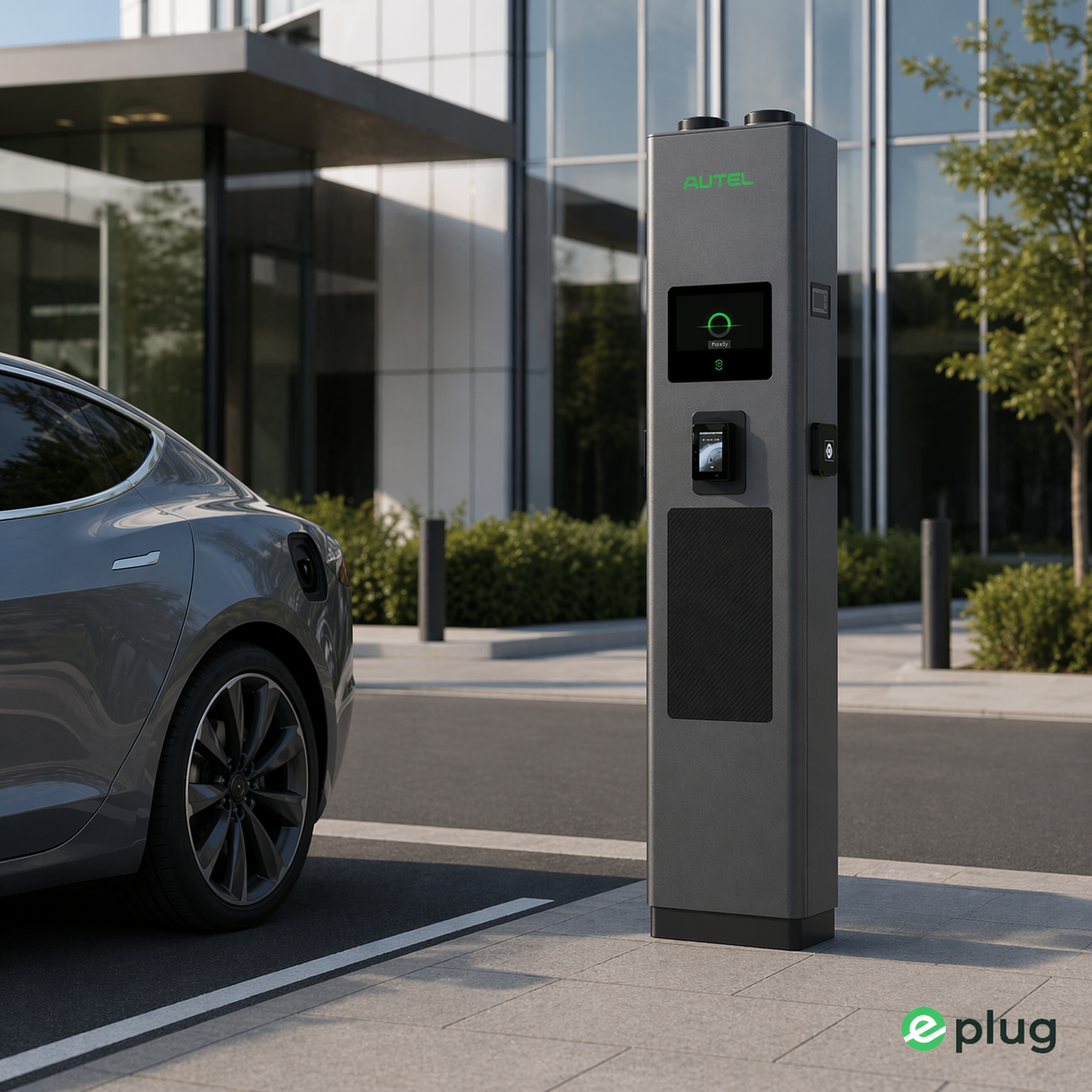

  • Commercial Grade Build: A durable, heavy-duty floor-mounted design engineered to excel in high-traffic public areas and fleet parking.
  • Premium User Interface: Features an integrated 8-inch high-definition touch screen (1280x720 resolution) alongside multi-payment options like mobile app, RFID, or credit cards.
  • Optimized Smart Energy: Built-in smart power sharing automatically shifts energy distribution between connected vehicles for optimal load balancing.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible.
View full details

Technical Specifications

Power & Input

  • Voltage: 400V (plus or minus 15%, Three Phase, 50Hz)
  • Network Type: TT, TN, IT grid systems

Output Performance

  • Output Power Options: Up to 2x22 kW (Three Phase)
  • Output Current: 32A per port
  • Connector Variations: IEC 62196 Type 2 Socket or Shutter Socket
  • Charging Mode: Mode 3
  • Energy Measurement Accuracy: +/- 1.0%

Connectivity & Interface

  • Communication: Wi-Fi, Ethernet, 4G, Modbus TCP/IP, RS485
  • Communication Protocols: OCPP 1.6J and OCPP 2.0.1
  • User Interface: 8-inch HD Touch Screen LCD (1280x720)
  • Management Systems: Autel Charge App / Autel Charge Cloud
  • User Authentication: Mobile App, RFID Card, Credit Card, or Mobile Payment
  • RFID Reader: ISO 15693, ISO 14443
  • Software Update: OTA (Over-The-Air) updates via web portal

Safety & Physical

  • Protections: Integrated overcurrent, overvoltage, undervoltage, and surge protection
  • Residual Current Detection: AC 30mA + DC 6mA
  • Enclosure Protection Rating: IP54 (Weatherproof)
  • Impact Protection: IK10
  • Operating Temp: -30C to +50C
  • Storage Temp: -30C to +70C
  • Operating Altitude: Up to 2000m
  • Mounting: Floor-standing installation
  • Dimensions (H x W x D): 1467 x 310 x 200 mm
  • Certifications & Compliance: CE (TUV), IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955, NEN-EN-IEC 61439-7
  • Warranty: 24 months (Extendable options available)[cite: 2]
