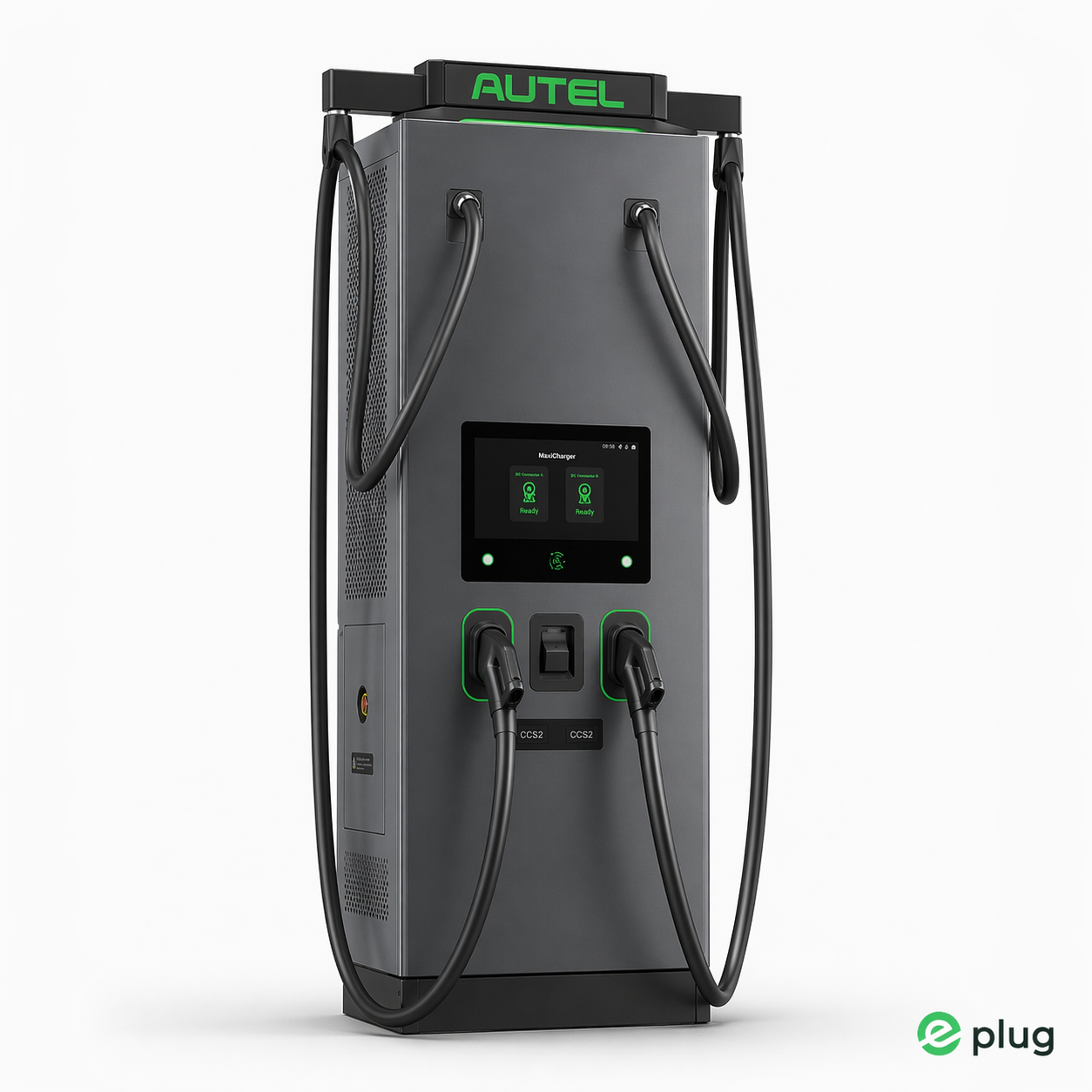

Autel MaxiCharger DC Fast Charging Station 90-240 kW

Autel MaxiCharger DC Fast Charging Station 90-240 kW

AUT-90DC-SxD

Charging Power
Request a Quote

Modular, Scalable, and Ultra-Fast Charging for Commercial Networks

The Autel MaxiCharger DC Fast (90kW to 240kW Edition) is the ultimate high-power Level 3 charging solution designed to scale alongside your business. Engineered with modular power blocks, this highly reliable charging station can be configured to deliver continuous output power from 90kW all the way up to a rapid 240kW. Capable of replenishing up to 100 km of driving range in just a few minutes, this dual-port station offers premium speed, outstanding security, and a massive 27-inch touchscreen designed to capture local advertising revenue.

Key Features:

  • Scalable Modular Power: Flexible design accommodates scalable configurations from 90kW up to 240kW, allowing you to upgrade your power capacity as demand grows.
  • Ultra-Fast Performance: Delivers rapid charging that can replenish up to 100 km of driving range in under 10 minutes depending on configuration.
  • Simultaneous Multi-Vehicle Charging: Dynamically distributes power across dual ports, enabling two electric vehicles to charge efficiently at the same time.

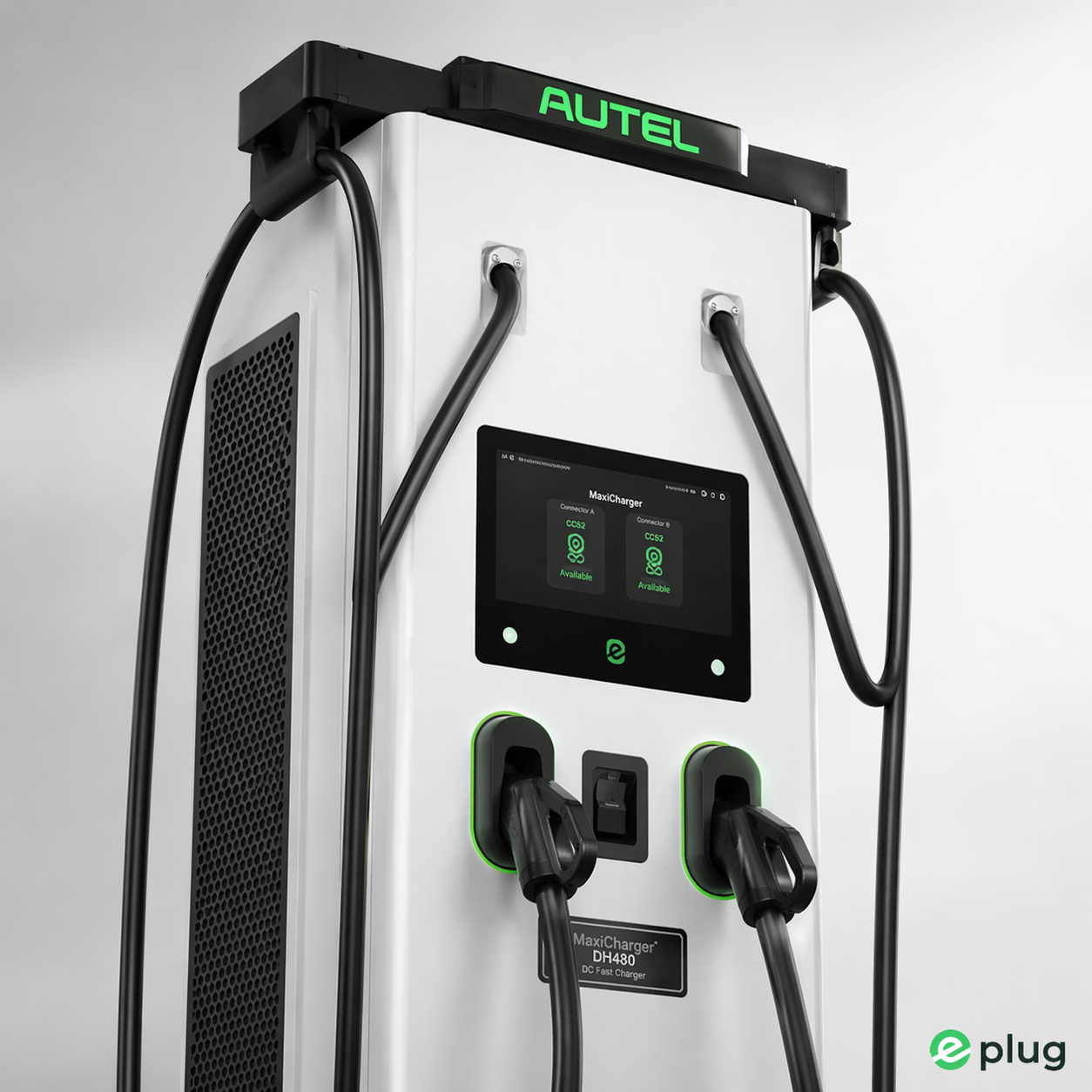

  • Massive 27-inch Touchscreen Display: Provides a brilliant, high-contrast user interface that functions as an intelligent digital billboard to display state-of-charge data or play high-revenue advertisements.
  • Exceptional 96% Efficiency: Translates to less heat dissipation and reduced ongoing energy costs for charge point operators.
  • Plug and Charge Integration: Supports the ISO 15118 standard, enabling drivers to simply plug in and start charging instantly with automatic billing.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

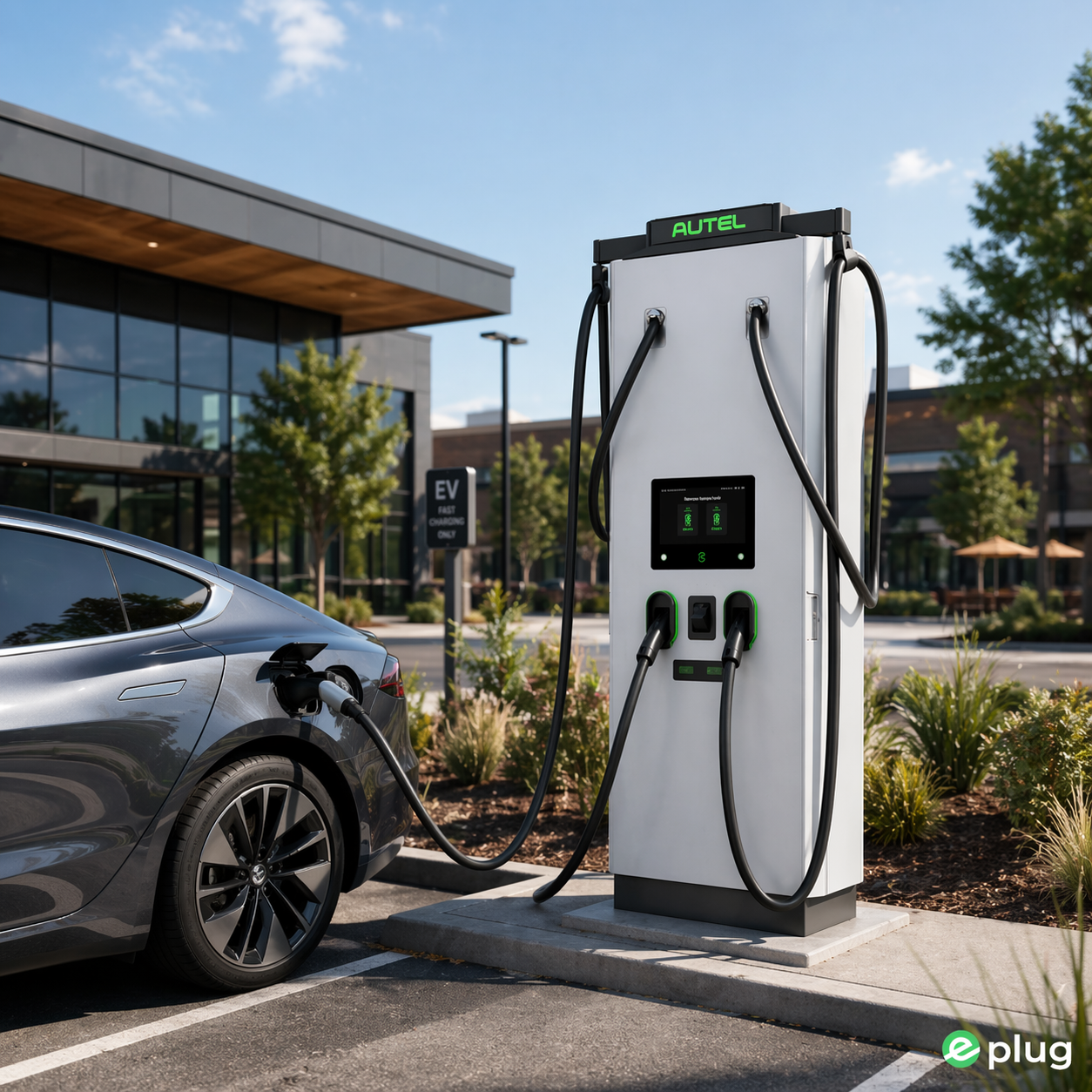

Recommended Installation Sites:

  • Highway Fuel Stations & Service Plazas: Provide high-speed rest-stop charging for travelers needing a quick charge-and-go experience.
  • Fleet Depots & Logistics Hubs: Power heavy-duty commercial vans, transit buses, and delivery vehicles with minimal overnight downtime.
  • Shopping Districts & Entertainment Centers: Generate a reliable, passive revenue stream using the integrated 27-inch advertising screen in premium retail areas.
  • Public Parking Garages & Urban Charging Hubs: Deploy high-occupancy charging in highly trafficked urban centers.
View full details

Technical Specifications

Power & Input

  • Input Connection: 3P + PE (No Neutral required)
  • Input Voltage Range: Three Phase 400 V AC plus or minus 15% (for EU compliance) or 480 V AC minus 15% to plus 10%
  • Input Frequency: 50 Hz / 60 Hz
  • Power Factor: Greater than or equal to 0.98 at greater than 50% load
  • Total Harmonic Distortion (THDi): Less than or equal to 5% at greater than 50% load
  • Short Circuit Current Rating: Greater than or equal to 65 kA

Output Performance

  • Configurable Nominal Power: 90kW / 120kW / 160kW / 240kW
  • Output Voltage Range: 150 to 950 V DC
  • Output Port Configuration: Dual Ports (Dual CCS2)
  • Maximum Output Current: Up to 400A per port with boost cable configuration
  • Peak Efficiency: Greater than or equal to 96%
  • Energy Metering Accuracy: Class A billing standard

Connectivity & Interface

  • Connectivity Support: 4G LTE, Wi-Fi, Ethernet
  • Communication Protocol: OCPP 1.6J JSON (Upgradable to OCPP 2.0.1)
  • User Interface Screen: 27-inch LCD High-Contrast Touchscreen (15.6-inch touchscreen optional)
  • Management Software: Autel Charge App / Autel Charge Cloud
  • User Authentication: QR Code, RFID Card, App Control, or Credit Card
  • RFID Reader: ISO 14443 A and B, ISO 15693, Mifare, NFC
  • Software Management: Remote OTA (Over-The-Air) web portal updates

Safety & Physical

  • Safety Protections: Overcurrent, overvoltage, undervoltage, ground fault, overtemperature, short circuit, insulation monitoring, and surge protection
  • Enclosure Protection Rating: IP54 (NEMA 3R equivalent for rugged outdoor use)
  • Impact Protection Rating: IK10
  • Operating Temp Range: -30C to +50C (-31F to +131F with linear derating starting at high temperatures)
  • Storage Temp Range: -40C to +70C
  • Operating Altitude: Up to 2000 meters (derating applies between 2000 and 3000 meters)
  • Noise Level: Less than 65 dB at 1 meter distance under full load
  • Mounting Configuration: Floor-standing free cabinet assembly
  • Cable Length: 5.5 meters standard (custom configurations optional)
  • Dimensions (H x W x D): 1950 x 820 x 700 mm (for 160kW to 240kW configurations) or 1950 x 820 x 600 mm (for 90kW to 120kW configurations)
  • Certifications & Standards: CE, ISO 15118 Plug and Charge, DIN 70121
