Autel MaxiCharger DC Charging Station 50 kW Street

Autel MaxiCharger DC Charging Station 50 kW Street

AUT-50DC-SxS

Connector configuration
Request a Quote

Premium Floor-Standing DC Fast Charging for Public and Commercial Spaces

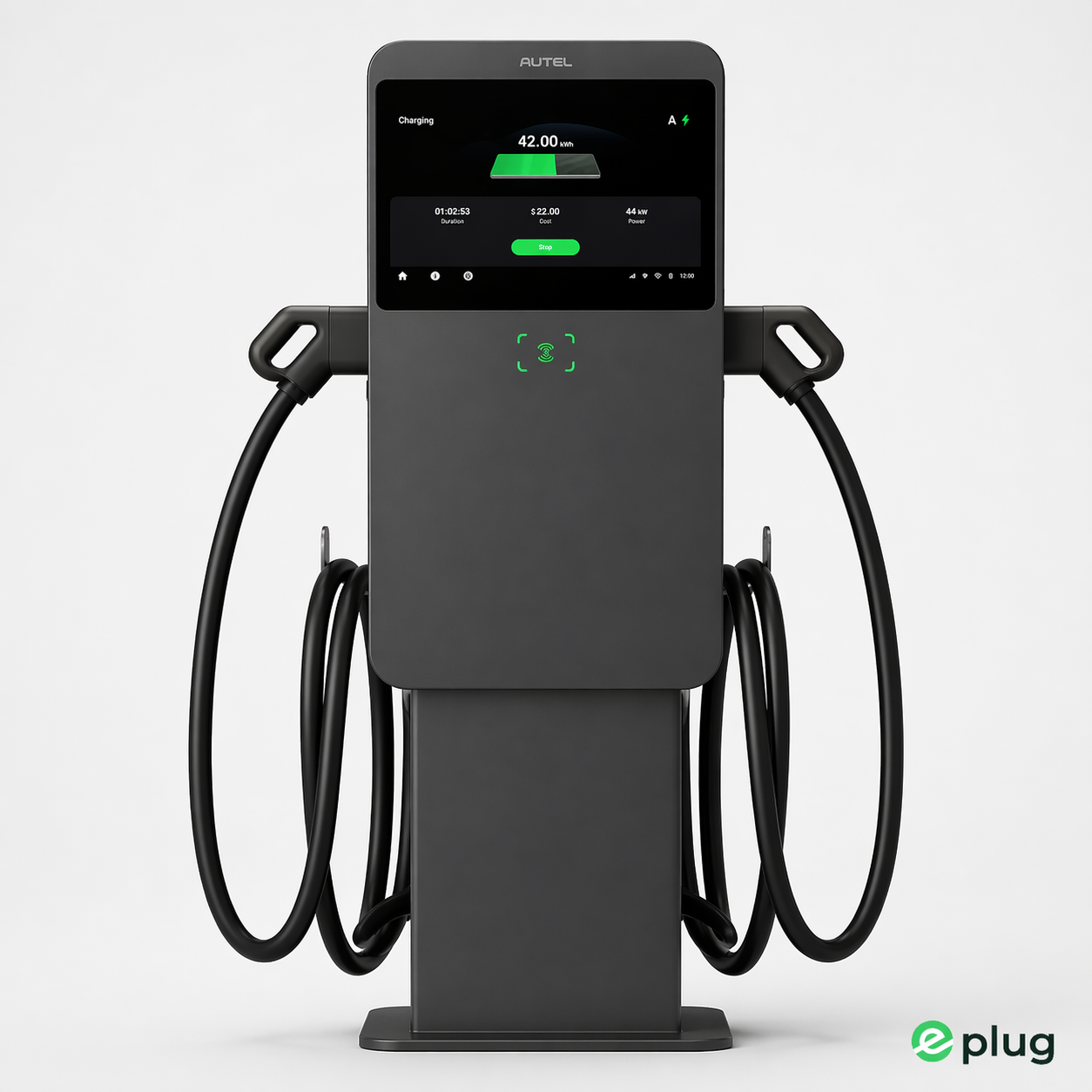

The Autel MaxiCharger DC 50 kW Street is a heavy-duty, pedestal-mounted DC fast charging station engineered for public environments, commercial parking, and urban destinations. Built to withstand high-volume public usage, this floor-standing unit features single / dual CCS2 charging outlets, allowing two electric vehicles to charge simultaneously and share up to 50 kW of continuous DC power. Its integrated 21.5-inch advertising touchscreen provides a seamless user interface while offering businesses a prime opportunity to generate incremental advertising revenue.

Key Features:

  • Pedestal Street Design: A robust, floor-standing pedestal setup optimized for on-street, sidewalk, or parking lot installations.
  • Dual-Port Fast Charging: Equipped with one or two CCS2 cables, allowing dual-vehicle charging with smart dynamic power sharing.
  • Rapid Charge Times: Delivers up to 130 km of driving range in just 30 minutes, keeping vehicle turnover high.
  • Interactive Advertising Screen: Features an ultra-bright, 21.5-inch high-definition touch display perfect for step-by-step user instructions and digital media playback.
  • Industry-Leading 96% Efficiency: Peak operating efficiency of 96% or higher minimizes energy overhead costs for site owners.
  • All-Weather Durability: Housed in a heavy-duty, outdoor-rated stainless steel enclosure with IP54 ingress protection and IK10 impact resistance.
  • e-MOVE RO and e-Mobility RO government state aid programme compatible

Recommended Installation Sites:

  • On-Street & Public Parking: Perfect for municipal curbside charging, public squares, and metropolitan on-street spaces.
  • Retail Centers & Malls: Drive foot traffic and let shoppers top off their vehicles while enjoying on-site dining or shopping.
  • Commercial and Office Parks: Provide executive-level fast charging for employees, clients, and commercial tenants.
  • Fleets & Transport Depots: Keeps medium-duty delivery vans, utility vehicles, and company fleets rapidly charged and ready for service.
View full details

Technical Specifications

Power & Input

  • Input Earthing System: 3P, N, PE
  • Input Voltage: Three Phase 400 V AC plus or minus 10%
  • Input Frequency: 50 Hz
  • Power Factor: Greater than or equal to 0.99
  • Total Harmonic Distortion (THDi): Less than or equal to 5%

Output Performance

  • Nominal Power: Max. 50 kW DC
  • Output Voltage Range: 150 to 950 V DC
  • Maximum Output Current: 133 A
  • Output Configurations: Single / Dual CCS2 Ports
  • Simultaneous Charging: Supported with dynamic power sharing
  • Peak Efficiency: Greater than or equal to 96%

Connectivity & Interface

  • Connectivity Support: 4G, Wi-Fi, Ethernet, Bluetooth
  • Communication Protocol: OCPP 1.6J (Upgradable to OCPP 2.0.1)
  • User Interface Screen: 21.5-inch LCD Touchscreen (1920x1080 resolution)
  • Management Platform: Autel Charge App / Autel Charge Cloud
  • User Authentication Options: Mobile App, RFID Card, Plug and Charge
  • Software Management: Remote OTA (Over-The-Air) web portal updates

Safety & Physical

  • Connectivity Support: 4G, Wi-Fi, Ethernet, Bluetooth
  • Communication Protocol: OCPP 1.6J (Upgradable to OCPP 2.0.1)
  • User Interface Screen: 21.5-inch LCD Touchscreen (1920x1080 resolution)
  • Management Platform: Autel Charge App / Autel Charge Cloud
  • User Authentication Options: Mobile App, RFID Card, Plug and Charge
  • Software Management: Remote OTA (Over-The-Air) web portal updates
